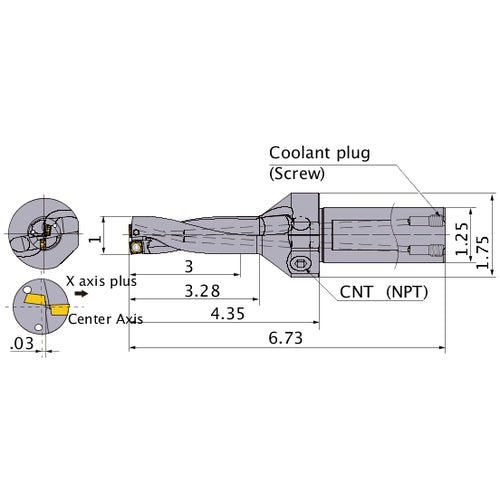

MVX1000X3C125 INDEXABLE DRILL
Item #: MB03679640
Brand: Mitsubishi Materials USA
Model #: 679640
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3″ |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Flange Diameter (DF) | 1-3/4″ |
| Protruding Length (LPR) | 4.35″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 6.73″ |
| Length Group | 3D |
