MVX2300X4F25 INDEXABLE DRILL
Item #: MB03653968
Brand: Mitsubishi Materials USA
Model #: 653968

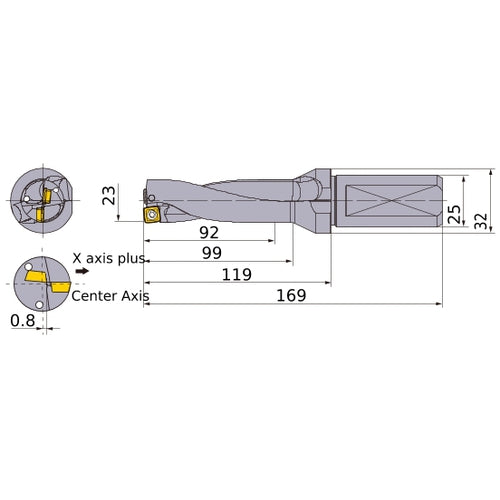

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 23 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 92 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Flange Diameter (DF) | 32 mm |
| Protruding Length (LPR) | 119 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 169 mm |
| Length Group | 4D |
