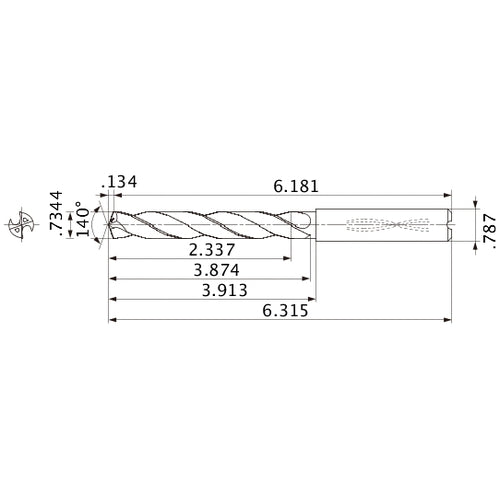

MMS1865X3D200 DP7020 0.7344″ Dia. × 0.787″ Shank × 3.874″ Flute Length × 6.315″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03601720
Brand: Mitsubishi Materials USA
Model #: 601720
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.7344″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.7344″ |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | DP7020 |
| Applicable Material | Cast Iron |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.787″ |
| Series/List # | MMS_INCH |
| Head Length (LH) | 3.913″ |
| Usable Length (LU) | 2.337″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 3.874″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 6.315″ |
| Point Length (PL) | 0.134″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 6.181″ |
| Feature | New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.,Long drill life and high efficiency drilling of holes in stainless steel. |
