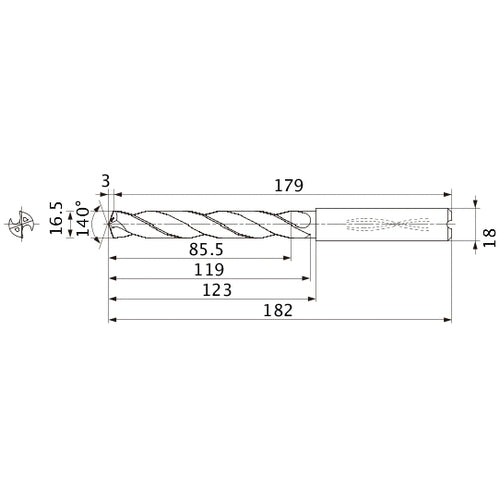

MMS1650X5DB DP7020 16.5 mm Dia. × 18 mm Shank × 119 mm Flute Length × 182 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03556383
Brand: Mitsubishi Materials USA
Model #: 556383
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 16.5 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16.5 mm |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Grade | DP7020 |
| Applicable Material | Cast Iron |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Series/List # | MMS |
| Head Length (LH) | 123 mm |
| Usable Length (LU) | 85.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 119 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 182 mm |
| Point Length (PL) | 3 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 179 mm |
| Feature | New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.,Long drill life and high efficiency drilling of holes in stainless steel. |
