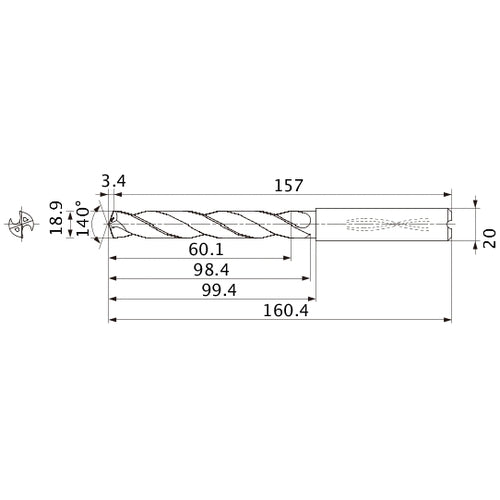

MMS1890X3DB CARB DRILL
Item #: MB03554927
Brand: Mitsubishi Materials USA
Model #: 554927
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 18.9 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 18.9 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | DP7020 |
| Applicable Material | Cast Iron |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Series/List # | MMS |
| Head Length (LH) | 99.4 mm |
| Usable Length (LU) | 60.1 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 98.4 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 160.4 mm |
| Point Length (PL) | 3.4 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 157 mm |
