MNS1120X10DB CARB DRILL
Item #: MB03465094
Brand: Mitsubishi Materials USA
Model #: 465094

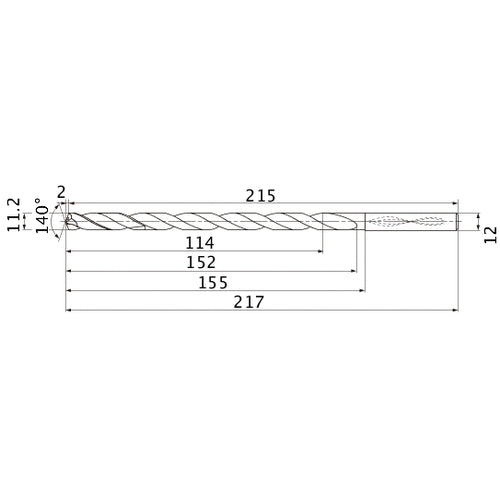

| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 11.2 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.2 mm |
| Cutting Edge Material | Carbide |
| Length Group | 10xD |
| Grade | TF15 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Series/List # | MNS |
| Head Length (LH) | 155 mm |
| Usable Length (LU) | 114 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 152 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 217 mm |
| Point Length (PL) | 2 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 215 mm |
