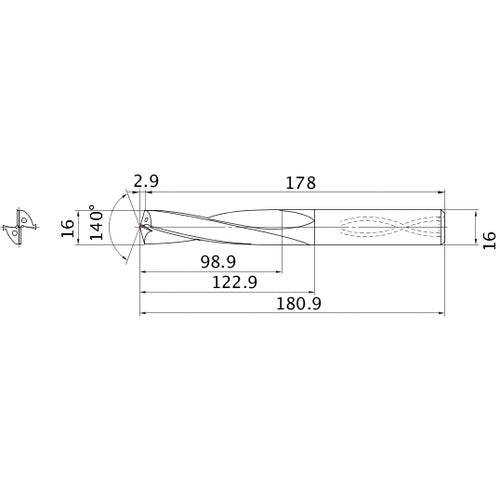

MAS1600LB HTI10 16 mm Dia. × 16 mm Shank × 122.9 mm Flute Length × 180.9 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03329666
Brand: Mitsubishi Materials USA
Model #: 329666
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 16 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16 mm |
| Grade | HTi10 |
| Length Group | 6xD |
| Measurement Type | Metric |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | MAE_MAS |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Usable Length (LU) | 98.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 122.9 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 180.9 mm |
| Point Length (PL) | 2.9 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 178 mm |
| Feature | Pre-hole drilling for rolled tap.,Helical through coolant hole enables high speed machining (MAS type).,Specialized in aluminum and cast iron drilling.,High hole accuracy. |
| Flute Helix Angle (FHA) | 10 Degrees |
