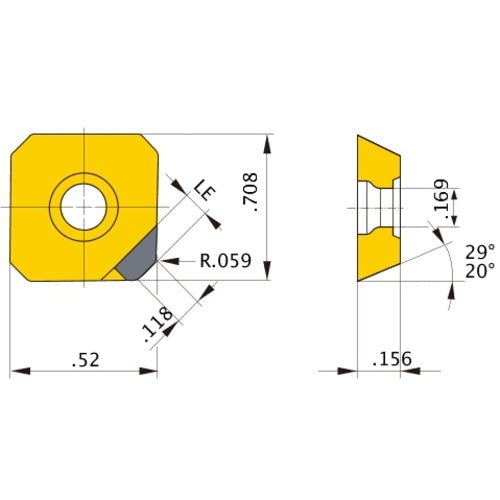

NP-WEEW13T3AGTR3C MB710 CBN INSERT
Item #: MB01195274
Brand: Mitsubishi Materials USA
Model #: 195274
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Fixing Hole Diameter (D1) | 4.293 mm |
| Corner Radius (RE) | 1.499 mm |
| Clearance Angle Major (AN) | 29 Degrees |
| Cutting Edge Length (L) | 17.983 mm |
| Measurement Type | Metric |
| Insert Thickness (S) | 3.962 mm |
| Series/List # | MB710 |
| Cutting Edge Material | CBN |
| Insert Width (W1) | 13.208 mm |
| Grade | MB710 |
| Cutting Edge Effective Length (LE) | 2.997 mm |
| Tool Type | Rotating Insert |
