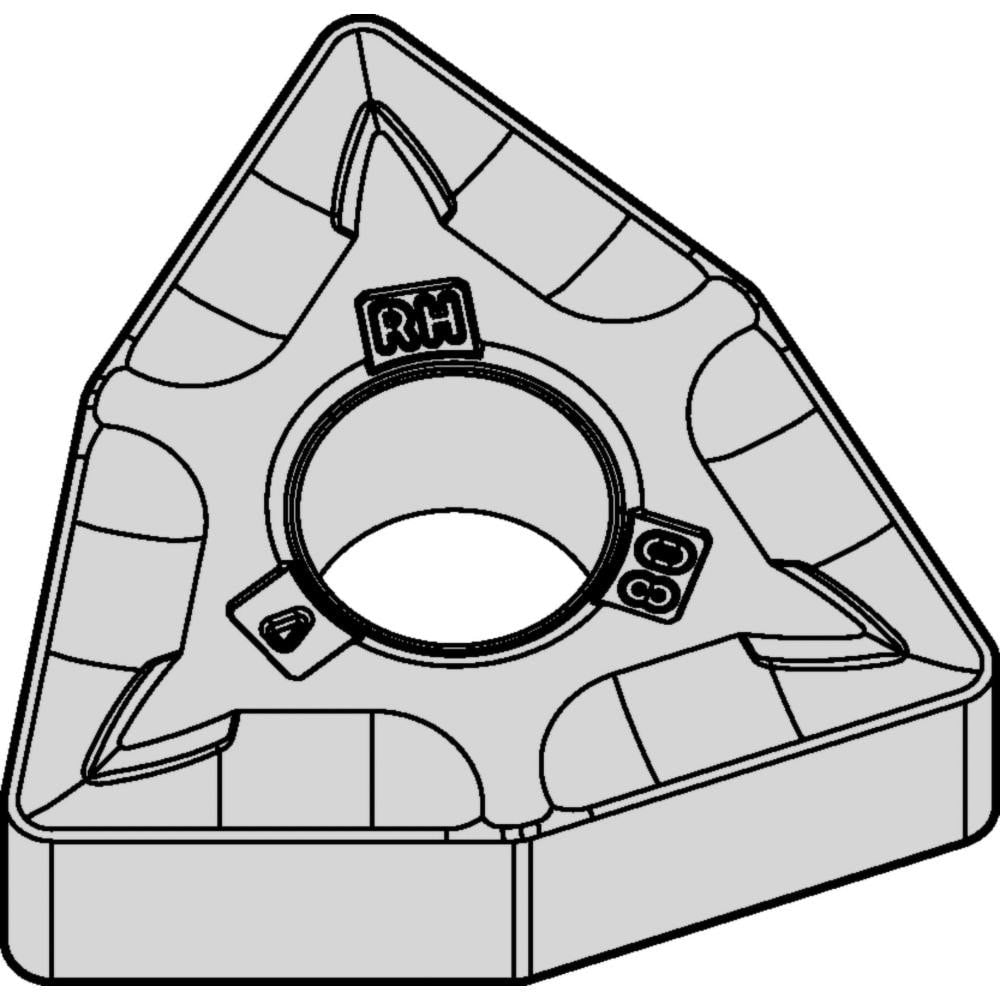

Brand: Widia / Part #: 6673948

Brand: Widia / Part #: 6673948


Item #: 94100955
Brand: Widia
Model #: 6673948

Product Specifications

Insert Style WNMG
Insert Shape Code W
Insert Size Code 332
Insert Shape Trigon
Coating/Finish TiCN; Al2O3
Manufacturer Grade WK15CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.1283
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series WNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.2565
Number Of Cutting Edges 6
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code WNMG332RH
Iso Code WNMG060408RH
Manufacturers Catalog Number WNMG332RH
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker RH
Style WNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$6.21
