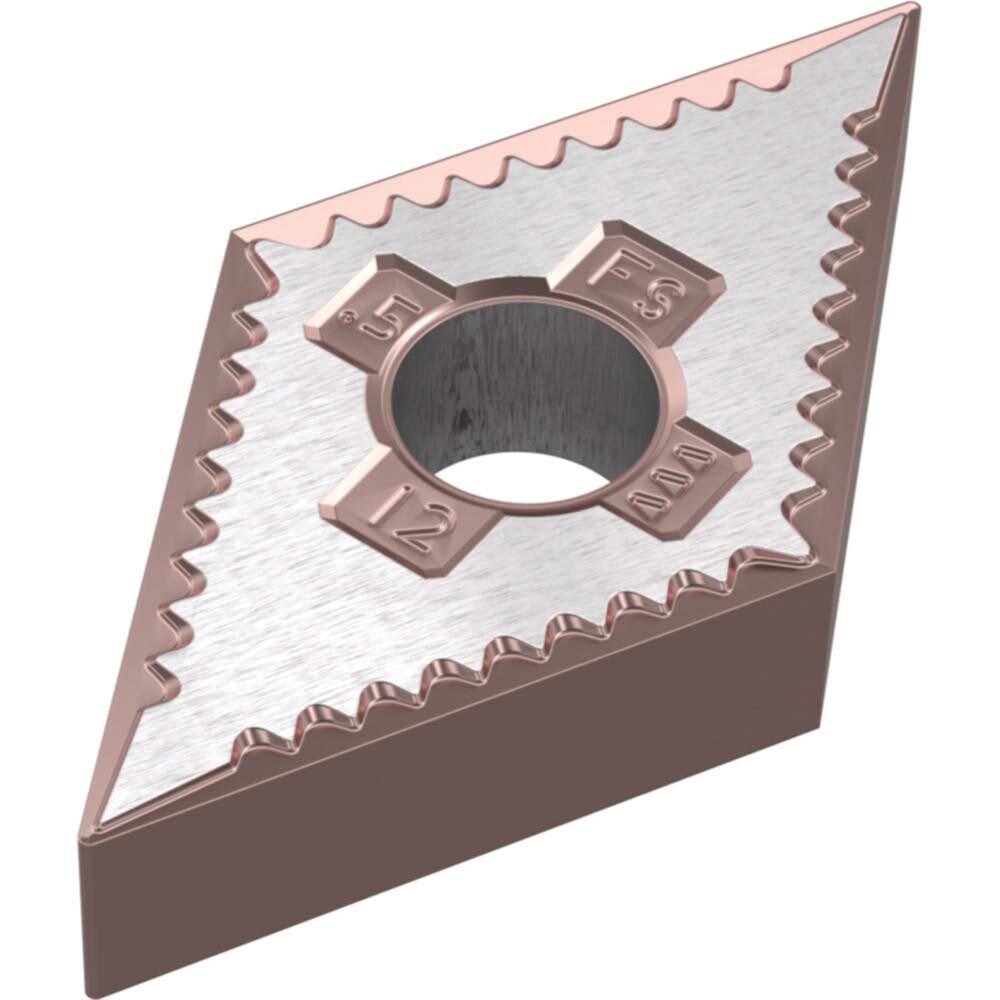

Brand: Widia / Part #: 5549996

Brand: Widia / Part #: 5549996


Item #: 95948337
Brand: Widia
Model #: 5549996

Product Specifications

Insert Style DNGG
Insert Shape Code D
Insert Size Code 442
Insert Shape Diamond
Coating/Finish Uncoated
Manufacturer Grade WU10HT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.3052
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code G
Included Angle 55.00
Relief Angle 0.000
Series DNGG
Coating Process Uncoated
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6104
Number Of Cutting Edges 4
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code DNGG442FS
Iso Code DNGG150608FS
Manufacturers Catalog Number DNGG442FS
Cutting Direction Neutral
Coating Classification Uncoated
Chip Breaker FS
Cutting Edge Style Sharp
Style DNGG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$17.69
