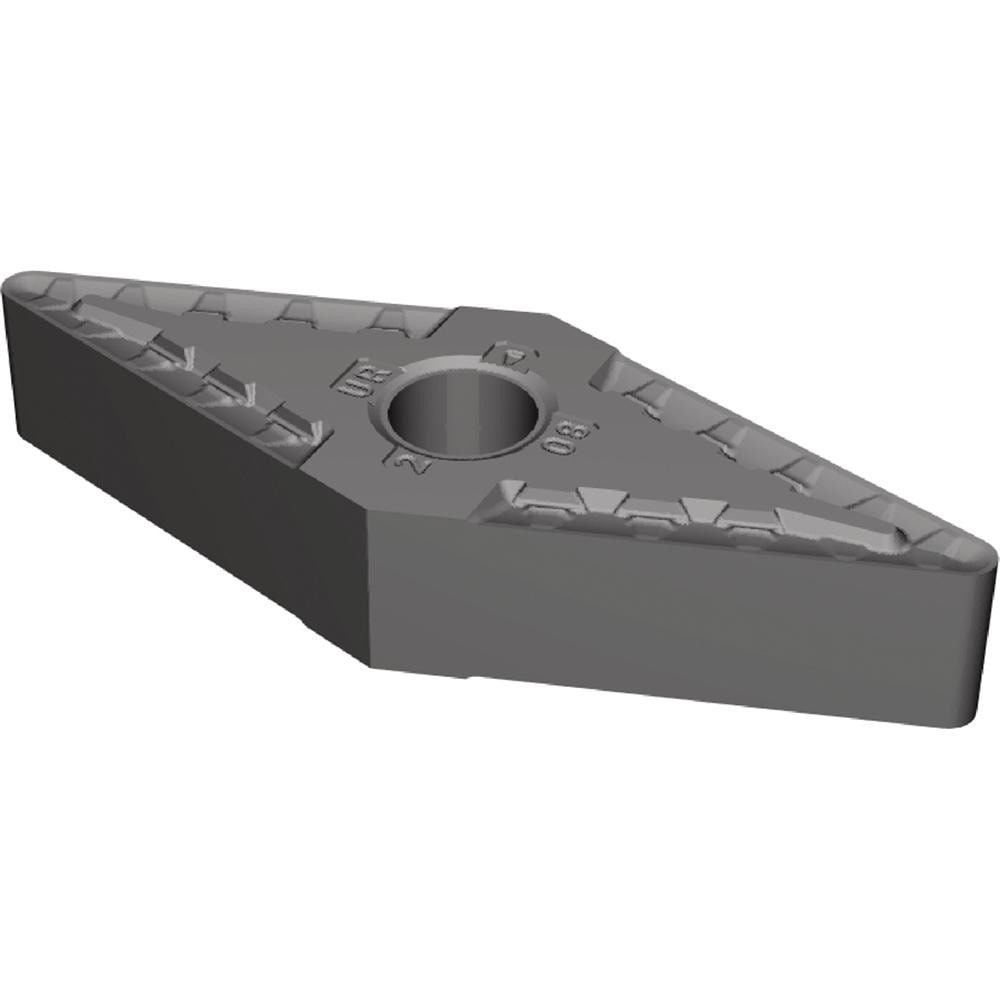

Brand: Widia / Part #: 4169439

Brand: Widia / Part #: 4169439


Item #: 95623013
Brand: Widia
Model #: 4169439

Product Specifications

Insert Style VNMG
Insert Shape Code V
Insert Size Code 332
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM15CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3269
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 35.00
Relief Angle 0.000
Series VNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6538
Number Of Cutting Edges 4
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code VNMG332UR
Iso Code VNMG160408UR
Manufacturers Catalog Number VNMG332UR
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker UR
Style VNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$8.69
