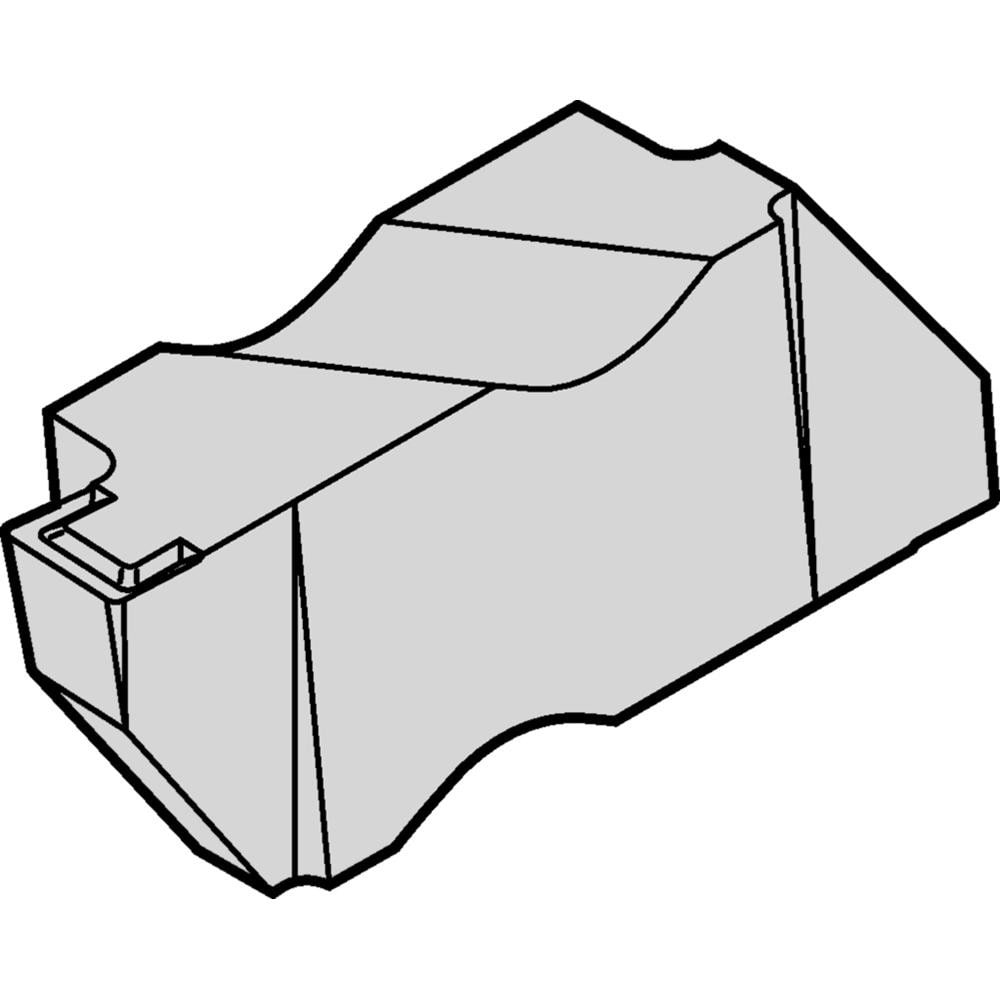

Brand: Widia / Part #: 3607219

Brand: Widia / Part #: 3607219


Item #: 97777650
Brand: Widia
Model #: 3607219

Product Specifications

Insert Style NG-K
Insert Size Code 3
Insert Size 3
Insert Material Carbide
Manufacturer Grade TN6025
Cutting Width (Decimal Inch) 0.0394
Cutting Width (mm) 1.000
Maximum Depth of Cut (Decimal Inch) 0.0752
Maximum Depth of Cut (mm) 1.91
Insert Holding Method Clamp
Cutting Height (mm) 1.91
Insert Hand Right Hand
Cutting Height (Decimal Inch) 0.0752
Corner Radius (mm) 0.20
Corner Radius (Decimal Inch) 0.0079
Lead Angle 11.000
Rake Positive
Multi-use Tool Yes
Cutting Tool Application Grooving; Turning
Series NG-K
Coating Process PVD
Rake Angle 10.000
Overall Length (Decimal Inch) 0.8870
Overall Length (mm) 22.5200
Primary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; N
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code NG3M100RK
Iso Code NG3M100RK
Relief Angle 11
Maximum Corner Radius (Decimal Inch) 0.0079
Minimum Corner Radius (Decimal Inch) 0.0100
Manufacturers Catalog Number NG3M100RK
Insert Thickness (Decimal Inch) 0.3440
Minimum Groove Width (mm) 1.00
Thickness (Inch) 11/32
Type Top Notch Grooving Insert
Maximum Groove Width (mm) 1.00
Minimum Insert Width (mm) 4.98
Chip Breaker K
Insert Seat Size 3
Style Top Notch Grooving Insert
Insert Height (Decimal Inch) 0.3440
Full Radius No
Gage Diameter (Decimal Inch) 0.3750
Coating Classification PVD
Hole Diameter (Decimal Inch) 0.0000
Gage Diameter (Inch) 3/8
Overall Width 4.9800
Overall Width (Decimal Inch - 4 Decimals) 0.1960
Coating/Finish TiAlN
Number Of Cutting Edges 2
Single Or Double End Single
Groove Width (mm) 1.00
For Use With Grooving; Turning
Insert Thickness 8.74
Hole Diameter (Mm) ( - 0 Decimals) 0.0000
$21.89
