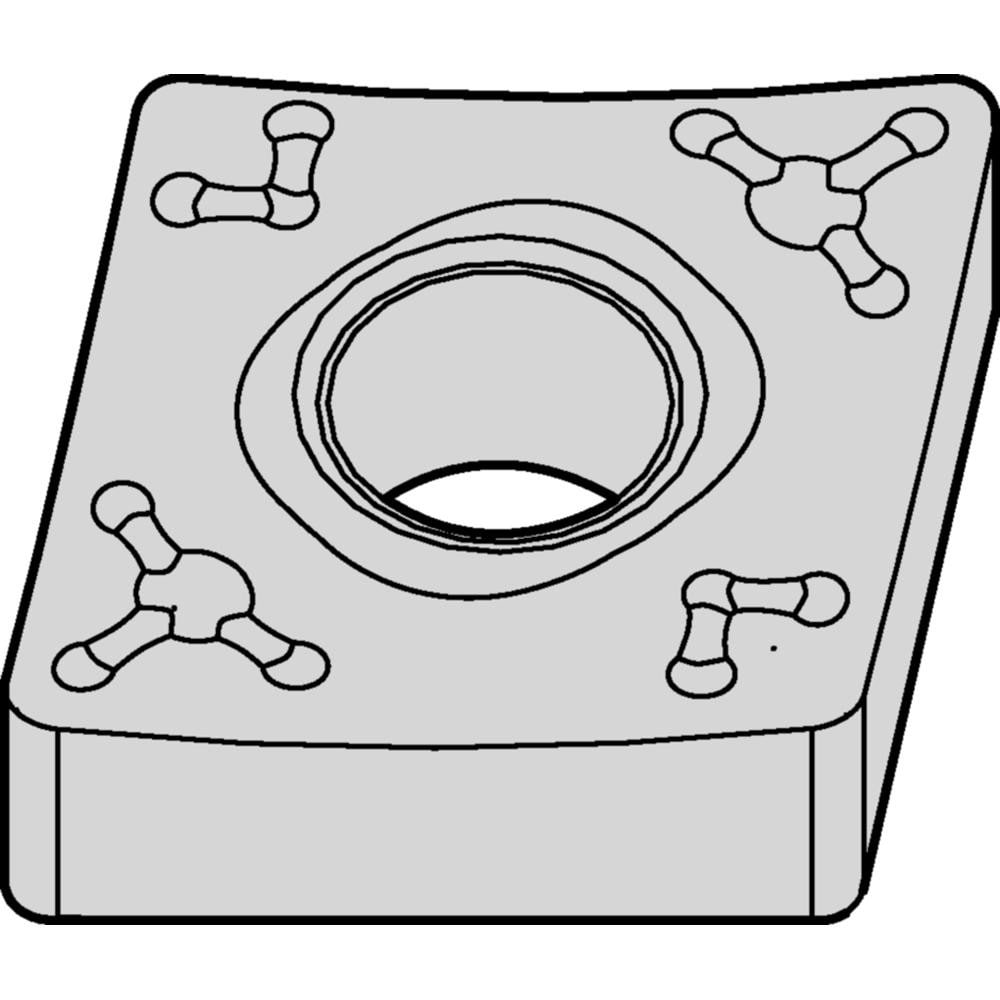

Brand: Widia / Part #: 5698361

Brand: Widia / Part #: 5698361


Item #: 93342582
Brand: Widia
Model #: 5698361

Product Specifications

Insert Style CNMM
Insert Shape Code C
Insert Size Code 433
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2539
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMM
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5077
Number Of Cutting Edges 4
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code CNMM43365
Iso Code CNMM12041265
Manufacturers Catalog Number CNMM43365
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 65
Style CNMM
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
