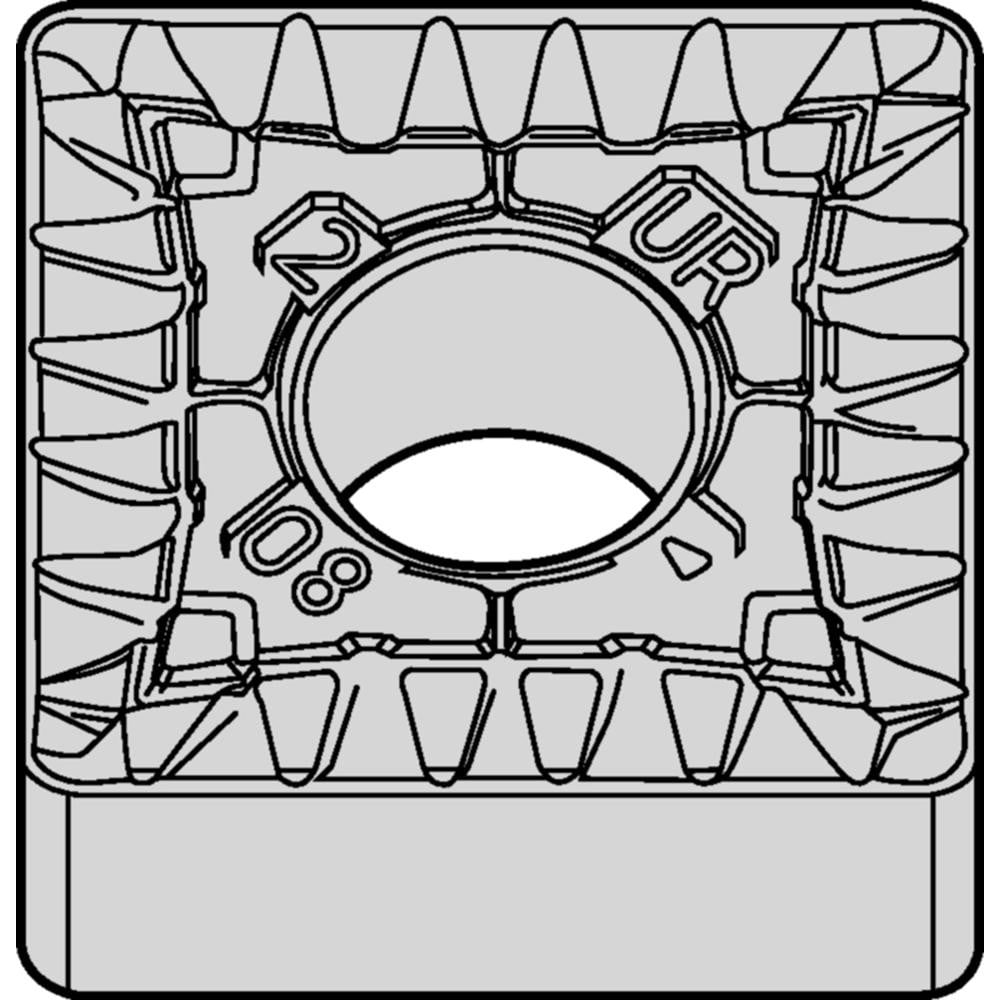

Brand: Widia / Part #: 4169429

Brand: Widia / Part #: 4169429


Item #: 95871901
Brand: Widia
Model #: 4169429

Product Specifications

Insert Style SNMG
Insert Shape Code S
Insert Size Code 432
Insert Shape Square
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM15CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2500
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 90.00
Relief Angle 0.000
Series SNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5000
Number Of Cutting Edges 8
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code SNMG432UR
Iso Code SNMG120408UR
Manufacturers Catalog Number SNMG432UR
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker UR
Style SNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$6.69
