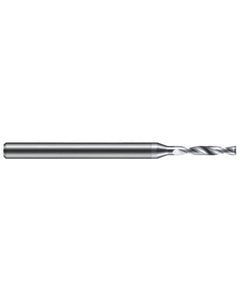

1.778 mm Dia. × 3 mm Shank Dia. × 50 mm OAL × 8.5 mm LCF, 180 Degrees, 3xD, 2 Flute, Helical Flute, TiB2 Solid Carbide Drills
Item #: GE90FBF0700C8
Brand: Harvey Tool
Model #: FBF0700-C8
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1.778 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.778 mm |
| Tool Type | Miniature |
| Length Group | 3xD |
| Flute Type | Helical |
| Coating | TiB2 |
| Measurement Type | Metric |
| Applicable Material | | Hard Materials | |
| Usable Length (LU) | 8.5 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Chip Flute (LCF) | 8.5 mm |
| Point Angle (SIG) | 180 Degrees |
| Overall Length (OAL) | 50 mm |
| Functional Length (LF) | 8.5 mm |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 22 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 |
| Body Material | Carbide |
| Shank Type | Round |
| Single / Double End | Single End |
| Shape | High Performance |
