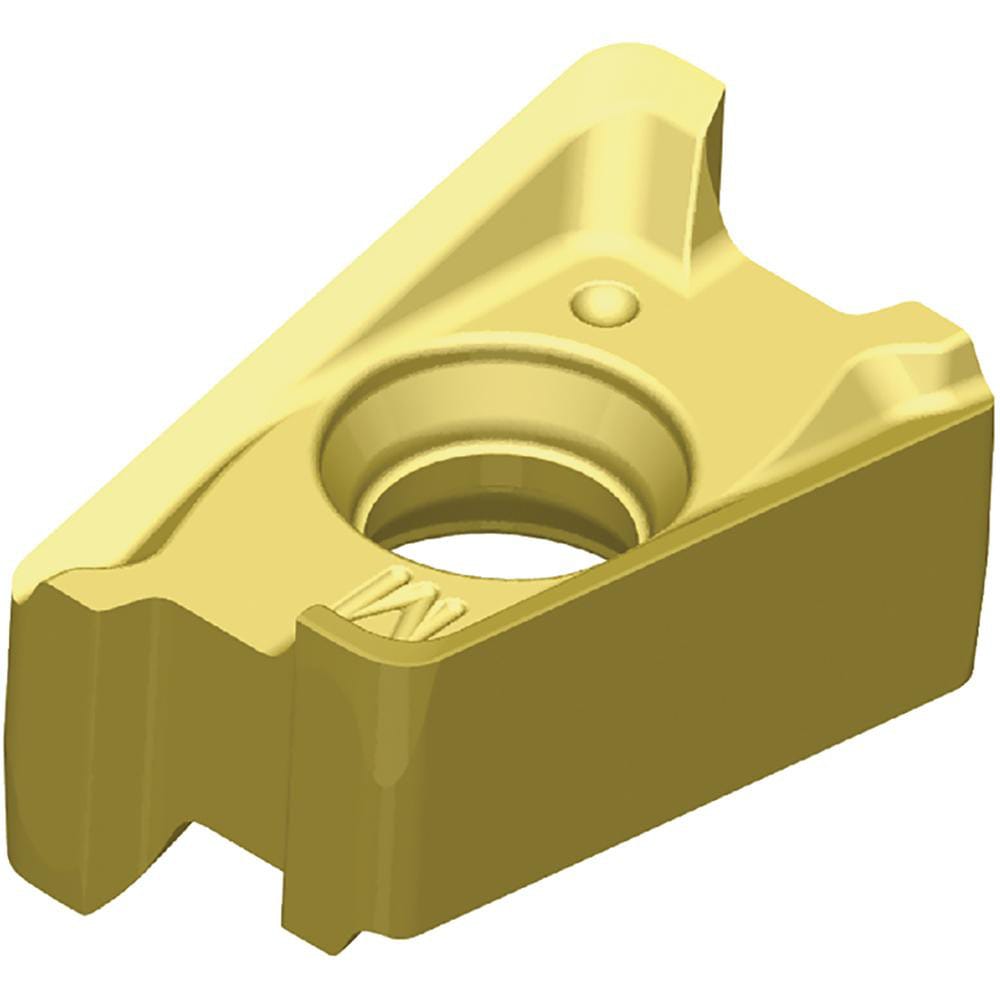

Brand: Widia / Part #: 6425417

Brand: Widia / Part #: 6425417


Item #: 94485372
Brand: Widia
Model #: 6425417

Product Specifications

Insert Style XNGU
Insert Size Code 1004
Insert Size 10
Insert Material Carbide
Manufacturer Grade WS40PM
Inscribed Circle (Decimal Inch) 0.2598
Corner Radius (Decimal Inch) 0.0160
Corner Radius (Inch) 1/64
Insert Hand Right Hand
Relief Angle 0.000
Series VSM490-10
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1340
Maximum Depth of Cut (Decimal Inch) 0.4265
Number Of Cutting Edges 4
Insert Shape Rectangle
Rake Negative
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code XNGU1001SRMM
Iso Code XNGU100404SRMM
Manufacturers Catalog Number XNGU1001SRMM
Cutter Series Compatibility VSM490 XN10
Chip Breaker MM
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Rectangle
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiN; TiAlN
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.2598
Thickness (Decimal Inch - 4 Decimals) 0.1900
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.4592
$18.38
