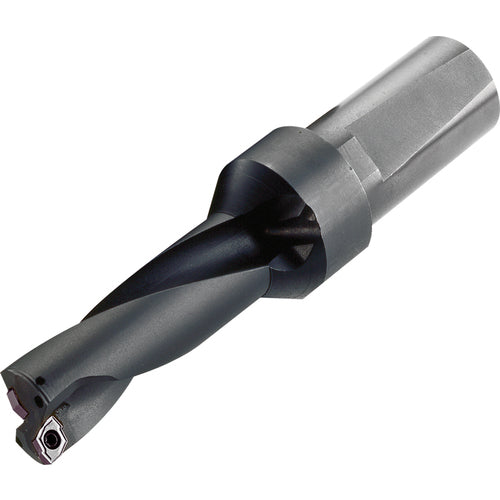

S75DRZ562168705G, DRZ Magic Drill 0.5625″ Cutting Diameter, 3xD, Indexable Insert Drill
Item #: KY96THD89106
Brand: Kyocera Precision Tools
Model #: THD89106
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.5626″ |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 1.687″ |
| Cutting Diameter Minimum (DCN) | 0.5626″ |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 0.5626″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Length Group | 3D |
| Overall Length (OAL) | 4.4201″ |
| Master Insert Identification (MIID) | ZCMT050203 | ZCMT050203SP | ZCMT050203SU |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8603846 |
