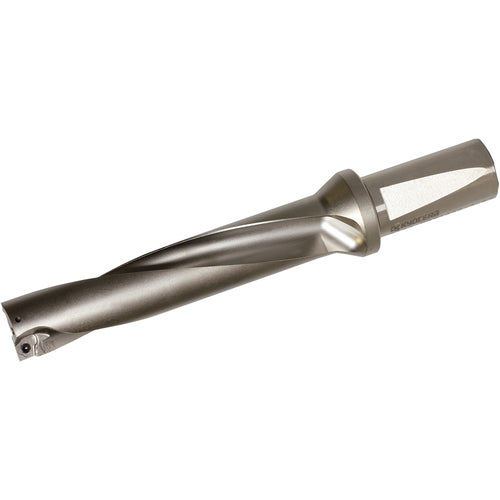

S100DRX0812506, DRX Magic Drill 0.8125″ Cutting Diameter, 5xD, Indexable Insert Drill
Item #: KY96THD89031
Brand: Kyocera Precision Tools
Model #: THD89031
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.8126″ |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 4.0598″ |
| Cutting Diameter Minimum (DCN) | 0.8126″ |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 0.8126″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Length Group | 5D |
| Overall Length (OAL) | 7.0299″ |
| Master Insert Identification (MIID) | ZXMT06T204 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8837208 |
