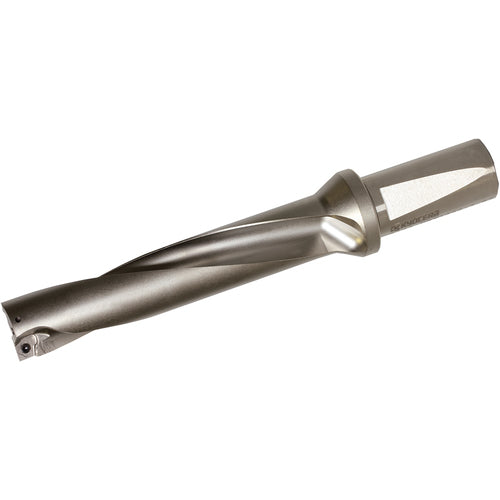

S100DRX0750506, DRX Magic Drill 0.7500″ Cutting Diameter, 5xD, Indexable Insert Drill
Item #: KY96THD89030
Brand: Kyocera Precision Tools
Model #: THD89030
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Cutting Diameter Minimum (DCN) | 3/4″ |
| Usable Length (LU) | 3-3/4″ |
| Cutting Diameter Maximum (DCX) | 3/4″ |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Length Group | 5D |
| Shank Type | Weldon |
| Master Insert Identification (MIID) | ZXMT06T204 |
| Overall Length (OAL) | 6.7201″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Decimal Equivalent | 0.75″ |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8837207 |
| Cutting Item Count (CICT) | 2 |
