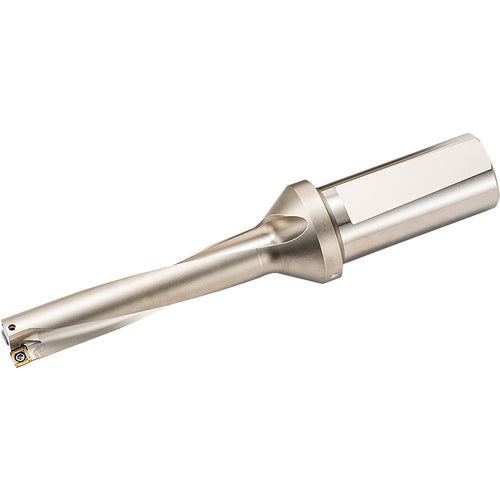

S150DRV1750514, DRV Magic Drill 1.7500″ Cutting Diameter, 5xD, Indexable Insert Drill
Item #: KY96THD12027
Brand: Kyocera Precision Tools
Model #: THD12027
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-3/4″ |
| Cutting Diameter Minimum (DCN) | 1-3/4″ |
| Usable Length (LU) | 8-3/4″ |
| Cutting Diameter Maximum (DCX) | 1-3/4″ |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Length Group | 5D |
| Shank Type | Weldon |
| Master Insert Identification (MIID) | SCMT140508--E | SCMT140510--I |
| Overall Length (OAL) | 12.7421″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Decimal Equivalent | 1.75″ |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8865231 |
| Cutting Item Count (CICT) | 2 |
