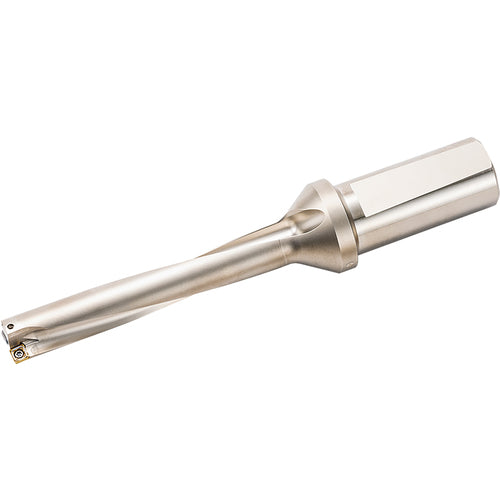

S075DRV0500603, DRV Magic Drill 0.5000″ Cutting Diameter, 6xD, Indexable Insert Drill
Item #: KY96THD11907
Brand: Kyocera Precision Tools
Model #: THD11907
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Cutting Diameter Minimum (DCN) | 1/2″ |
| Usable Length (LU) | 3″ |
| Cutting Diameter Maximum (DCX) | 1/2″ |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Length Group | 6D |
| Shank Type | Weldon |
| Master Insert Identification (MIID) | LCMT030203--E | LCMT030205--I |
| Overall Length (OAL) | 5.2988″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Decimal Equivalent | 0.5″ |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8862942 |
| Cutting Item Count (CICT) | 2 |
