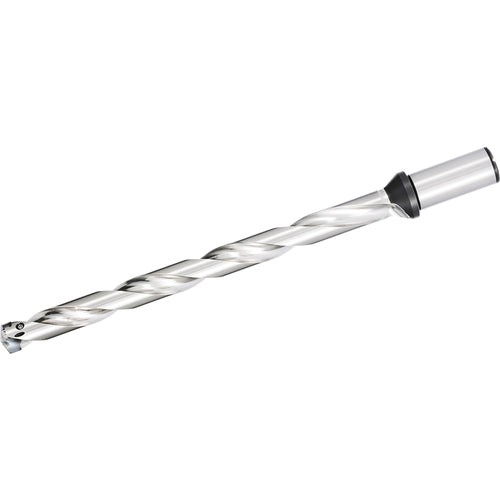

SF25DRA220M12, DRA Magic Drill 22.00-22.99mm Cutting Diameter, 12xD, Replaceable Tip Drill
Item #: KY96THD11886
Brand: Kyocera Precision Tools
Model #: THD11886
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 22 mm - 22.99 mm |
| Overall Length (OAL) | 365 mm |
| Usable Length (LU) | 276 mm |
| Shank Length (LS) | 56 mm |
| Length Group | 12D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Style | SF DRA |
| Insert Seat Size Code (SSC) | 220 |
| Master Insert Identification (MIID) | DA2200M- ~ DA2250M- |
| Cutting Diameter Minimum (DCN) | 22 mm |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 22.99 mm |
| Body Material | Steel |
