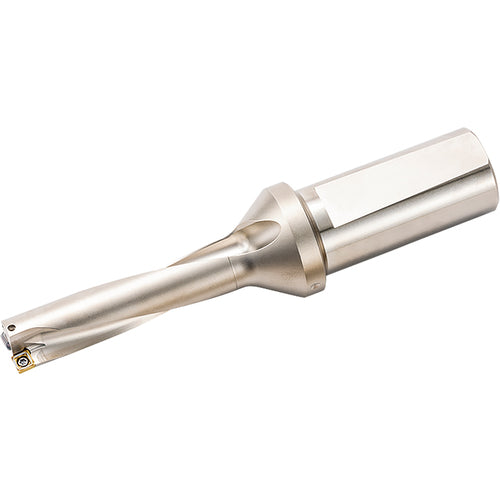

S20DRV155M404, DRV Magic Drill 15.50mm Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill
Item #: KY96THD11683
Brand: Kyocera Precision Tools
Model #: THD11683
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 15.5 mm |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 62 mm |
| Cutting Diameter Minimum (DCN) | 15.5 mm |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 15.5 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Measurement Type | Metric |
| Shank Type | Weldon |
| Length Group | 4D |
| Overall Length (OAL) | 126 mm |
| Master Insert Identification (MIID) | SCMT040205--E | SCMT040209--I |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8858558 |
