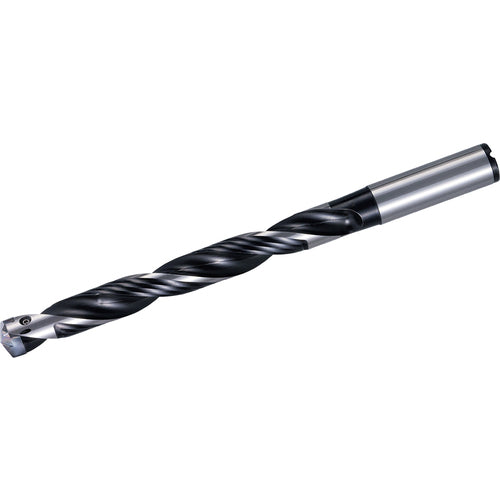

SS1000DRA190M8, DRA Magic Drill 0.7480-0.7870″ Cutting Diameter, 8xD, Replaceable Tip Drill
Item #: KY96THD11456
Brand: Kyocera Precision Tools
Model #: THD11456
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.748″ - 0.787″ |
| Overall Length (OAL) | 9.4091″ |
| Usable Length (LU) | 6.2988″ |
| Shank Length (LS) | 2.2051″ |
| Length Group | 8D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Style | SS DRA |
| Insert Seat Size Code (SSC) | 190 |
| Master Insert Identification (MIID) | DA1900M- ~ DA1990M- |
| Cutting Diameter Minimum (DCN) | 0.748″ |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.787″ |
| Body Material | Steel |
