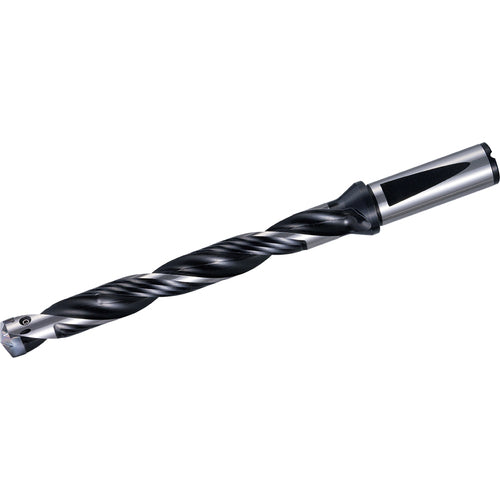

SF1000DRA200M8, DRA Magic Drill 0.7874-0.8264″ Cutting Diameter, 8xD, Replaceable Tip Drill
Item #: KY96THD11308
Brand: Kyocera Precision Tools
Model #: THD11308
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.7874″ - 0.8264″ |
| Overall Length (OAL) | 10″ |
| Usable Length (LU) | 6.6142″ |
| Shank Length (LS) | 2.2051″ |
| Length Group | 8D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Style | SF DRA |
| Insert Seat Size Code (SSC) | 200 |
| Master Insert Identification (MIID) | DA2000M- ~ DA2090M- |
| Cutting Diameter Minimum (DCN) | 0.7874″ |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.8264″ |
| Body Material | Steel |
