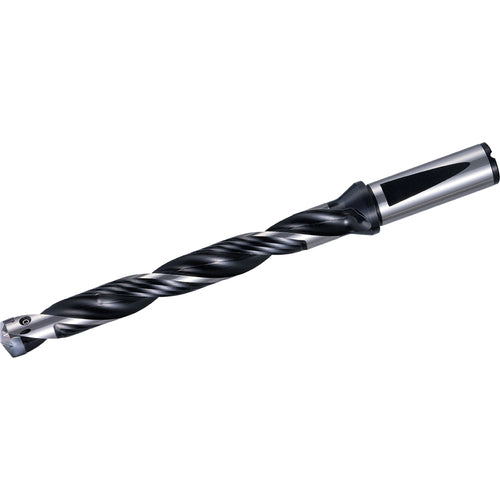

SF0625DRA115M8, DRA Magic Drill 0.4528-0.4720″ Cutting Diameter, 8xD, Replaceable Tip Drill
Item #: KY96THD11284
Brand: Kyocera Precision Tools
Model #: THD11284
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.4528″ - 0.4721″ |
| Overall Length (OAL) | 6.378″ |
| Usable Length (LU) | 3.7799″ |
| Shank Length (LS) | 1.8902″ |
| Length Group | 8D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.6252″ |
| Style | SF DRA |
| Insert Seat Size Code (SSC) | 115 |
| Master Insert Identification (MIID) | DA1150M- ~ DA1190M- |
| Cutting Diameter Minimum (DCN) | 0.4528″ |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.4721″ |
| Body Material | Steel |
