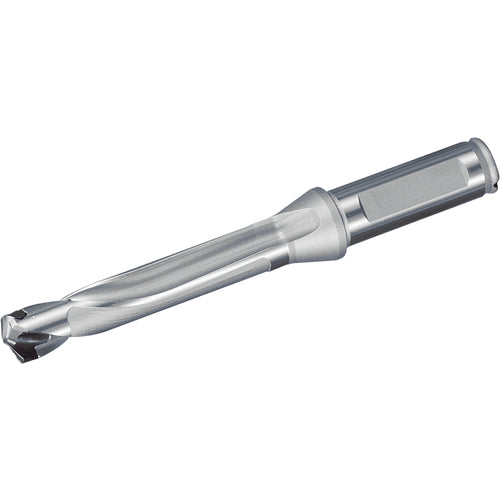

SF12DRC090M3, DRC Magic Drill 9.00-9.49mm Cutting Diameter, 3xD, Replaceable Tip Drill
Item #: KY96THD07304
Brand: Kyocera Precision Tools
Model #: THD07304
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9 mm - 9.49 mm |
| Overall Length (OAL) | 90 mm |
| Usable Length (LU) | 29 mm |
| Shank Length (LS) | 45 mm |
| Length Group | 3D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Style | SF DRC |
| Insert Seat Size Code (SSC) | 80 |
| Master Insert Identification (MIID) | DC0900M-SC ~ DC0940M-SC |
| Cutting Diameter Minimum (DCN) | 9 mm |
| Series/List # | DRC |
| Cutting Diameter Maximum (DCX) | 9.49 mm |
| Body Material | Steel |
