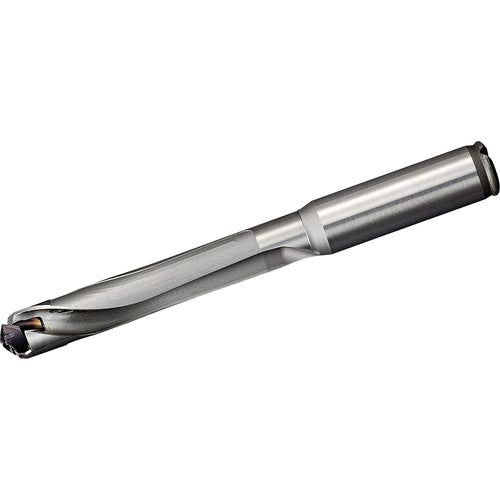

SS12DRC105M8, DRC Magic Drill 10.50-10.99mm Cutting Diameter, 8xD, Replaceable Tip Drill
Item #: KY96THD07107
Brand: Kyocera Precision Tools
Model #: THD07107
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10.5 mm - 10.99 mm |
| Overall Length (OAL) | 151 mm |
| Usable Length (LU) | 88 mm |
| Shank Length (LS) | 45 mm |
| Length Group | 8D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Style | SS DRC |
| Insert Seat Size Code (SSC) | 80 |
| Master Insert Identification (MIID) | DC1050M-SC ~ DC1090M-SC |
| Cutting Diameter Minimum (DCN) | 10.5 mm |
| Series/List # | DRC |
| Cutting Diameter Maximum (DCX) | 10.99 mm |
| Body Material | Steel |
