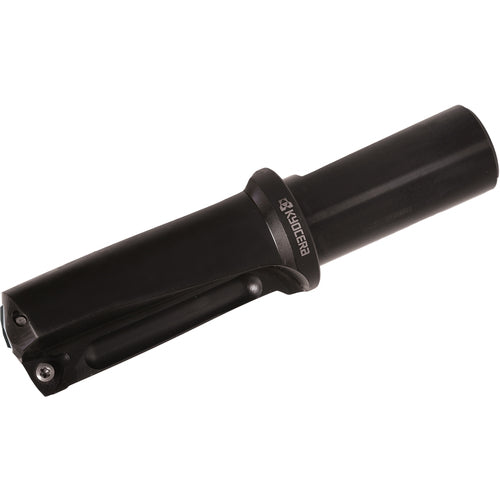

DR1575, HOLESHOT Drill 1.5750″ Cutting Diameter, Indexable Insert Drill
Item #: KY96OTM86242
Brand: Kyocera Precision Tools
Model #: OTM86242
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.5752″ |
| Cutting Item Count (CICT) | 3 |
| Usable Length (LU) | 2.8799″ |
| Cutting Diameter Minimum (DCN) | 1.5752″ |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 1.5752″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Point Length (PL) | 0.2079″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Shank Length (LS) | 2.2799″ |
| Master Insert Identification (MIID) | WCMX050308-M1 | WCMX050308-M1A |
| Overall Length (OAL) | 6.1599″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Model Number | 8600848 |
| Cutting Direction (HAND) | Right Hand |
