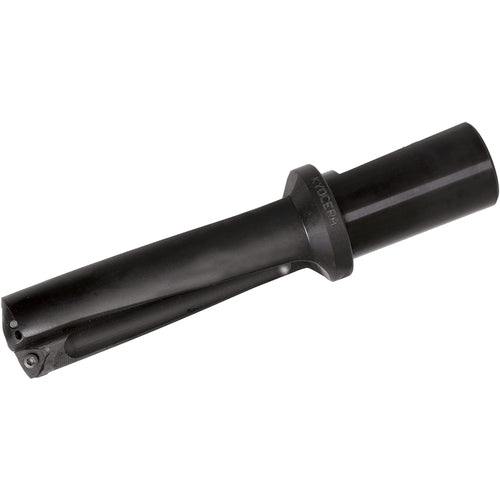

DR1031X3N, HOLESHOT Drill 1.0310″ Cutting Diameter, Indexable Insert Drill
Item #: KY96OTM86187
Brand: Kyocera Precision Tools
Model #: OTM86187
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.0311″ |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 3.0902″ |
| Cutting Diameter Minimum (DCN) | 1.0311″ |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 1.0311″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Point Length (PL) | 0.1512″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Shank Length (LS) | 2.2799″ |
| Master Insert Identification (MIID) | WCMX050308-M1 | WCMX050308-M1A |
| Overall Length (OAL) | 6.2701″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Model Number | 8600793 |
| Cutting Direction (HAND) | Right Hand |
