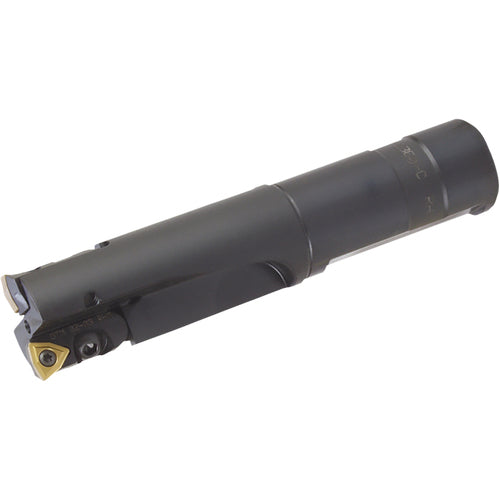

CD2100LC, Coremaster CoreDrill 2.1000-2.2500″ Cutting Diameter, Indexable Insert Drill
Item #: KY96OTM86090
Brand: Kyocera Precision Tools
Model #: OTM86090
| Product Specifications | |
|---|---|
| Usable Length (LU) | 4-1/2″ |
| Cutting Item Count (CICT) | 2 |
| Application | Drilling |
| Cutting Diameter Minimum (DCN) | 2.1″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Diameter Maximum (DCX) | 2-1/4″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Shank Length (LS) | 2.6902″ |
| Master Insert Identification (MIID) | WCMX06T308-M1 | WCMX06T308-M1A |
| Overall Length (OAL) | 8.1902″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Decimal Equivalent | 2.1 - 2.25″ |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8600696 |
