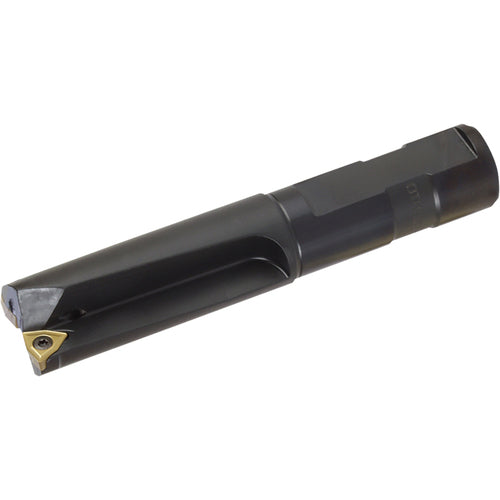

CD0825XL, Coremaster CoreDrill 0.8250″ Cutting Diameter, Indexable Insert Drill
Item #: KY96OTM86060
Brand: Kyocera Precision Tools
Model #: OTM86060
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.8252″ |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2-1/4″ |
| Cutting Item Count (CICT) | 2 |
| Application | Drilling |
| Cutting Diameter Minimum (DCN) | 0.8252″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Diameter Maximum (DCX) | 0.8252″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Shank Length (LS) | 2.2799″ |
| Master Insert Identification (MIID) | WCMX050308-M1 | WCMX050308-M1A |
| Overall Length (OAL) | 5.5299″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Model Number | 8600666 |
