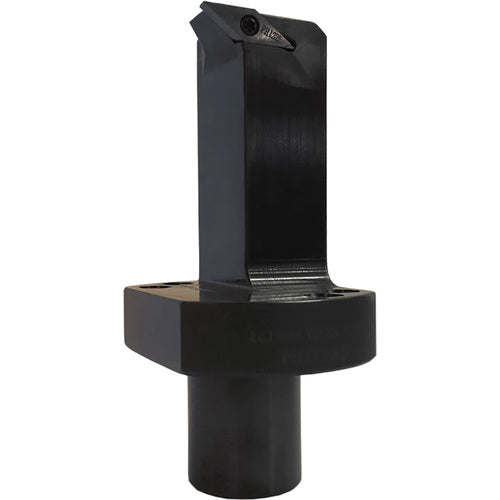

KSTB SR32JVBET22
Item #: KY968604563
Brand: Kyocera Precision Tools
Model #: OTM86645
| Product Specifications | |
|---|---|
| Overall Length (OAL) | 3.605″ |
| Rake Angle Radial (GAMF) | 5 Degrees |
| Head Length (LH) | 2-5/8″ |
| Body Diameter (BD) | 2″ |
| Functional Width (WF) | 1-1/2″ |
| Usable Length (LU) | 2-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.8661″ |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Clamping System | Screw Clamp |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | VBET22… |
| Series/List # | KSTB |
| Application | Sub-Spindle Turning for STAR Machines |
