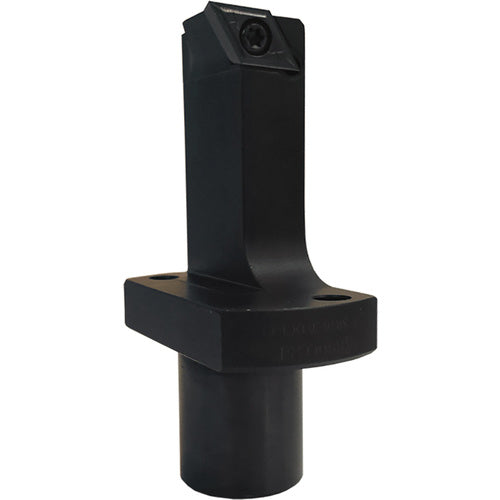

KSTB SV32DCET325
Item #: KY968603729
Brand: Kyocera Precision Tools
Model #: OTM87673
| Product Specifications | |
|---|---|
| Overall Length (OAL) | 3.785″ |
| Application | Sub-Spindle Turning for STAR Machines |
| Head Length (LH) | 2-5/8″ |
| Rake Angle Radial (GAMF) | 7 Degrees |
| Functional Width (WF) | 1-1/2″ |
| Usable Length (LU) | 2-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.8661″ |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Clamping System | Screw Clamp |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | DCET325... | DCGT325… |
| Series/List # | KSTB |
