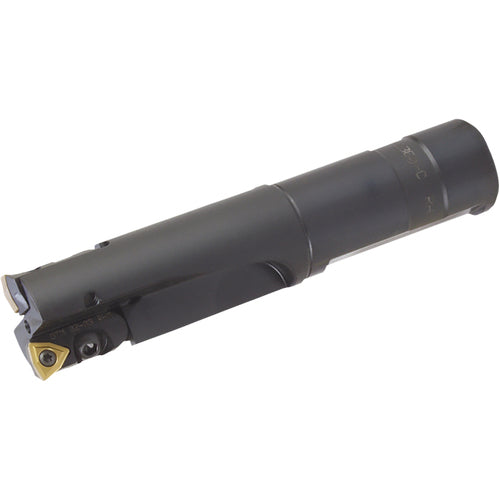

CD 2400 LC INDEXABLE DRL
Item #: KY968600701
Brand: Kyocera Precision Tools
Model #: OTM86095
| Product Specifications | |
|---|---|
| Usable Length (LU) | 5-1/2″ |
| Cutting Item Count (CICT) | 2 |
| Application | Drilling |
| Cutting Diameter Minimum (DCN) | 2.4″ |
| Connection Diameter Machine Side (DCONMS) | 2″ |
| Cutting Diameter Maximum (DCX) | 2.55″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Shank Length (LS) | 3-1/4″ |
| Master Insert Identification (MIID) | WCMX06T308-M1 | WCMX06T308-M1A |
| Overall Length (OAL) | 9-3/4″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Decimal Equivalent | 2.4 - 2.55″ |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8600701 |
