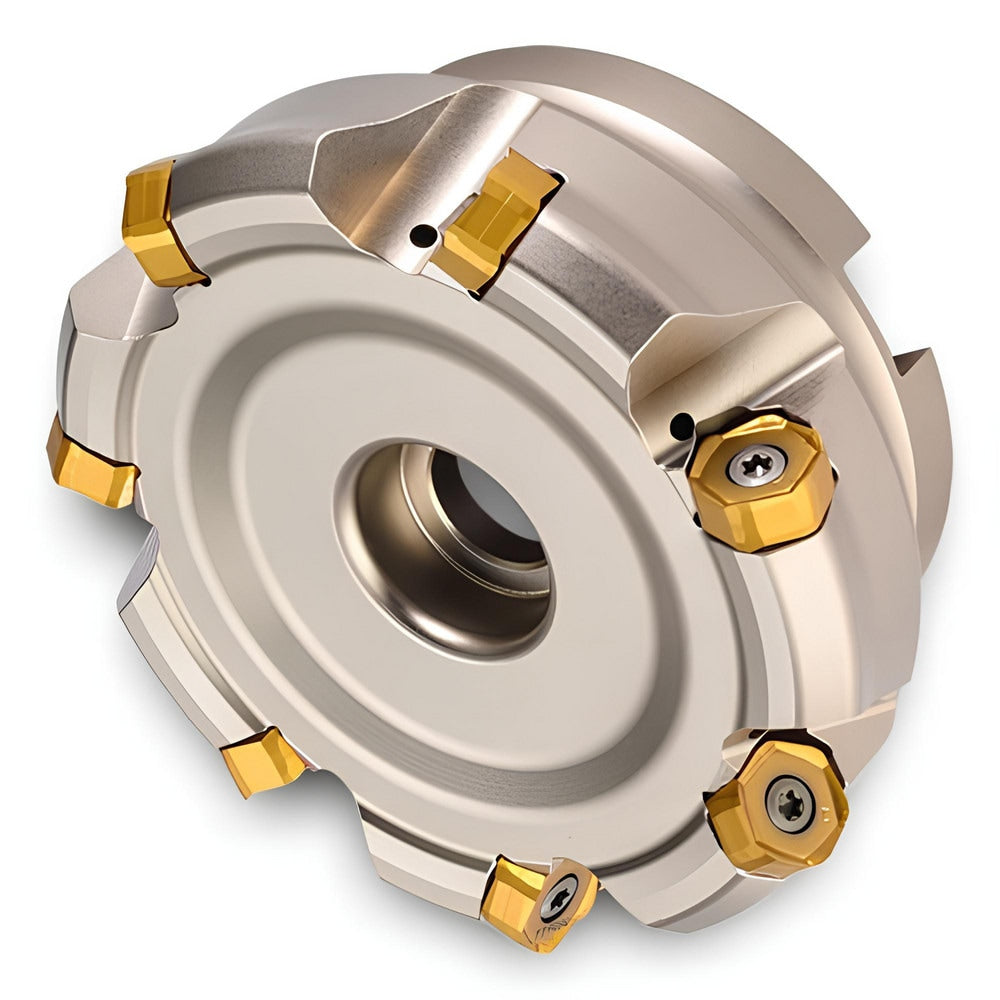

Brand: Ingersoll Cutting Tools / Part #: 2925138
Item #: 96715917
Brand: Ingersoll Cutting Tools
Model #: 2925138
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
| Minimum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Inch) | 4-25/64 |
| Maximum Cutting Diameter (Decimal Inch) | 4.3900 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 0605 |
| Cutter Style | HN5D |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | HN5D |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Width (Inch) | 5/8 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Pitch Type | Close |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | HNGU0605 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | HN5D-40R01 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
| Number Of Flutes | 12 |
