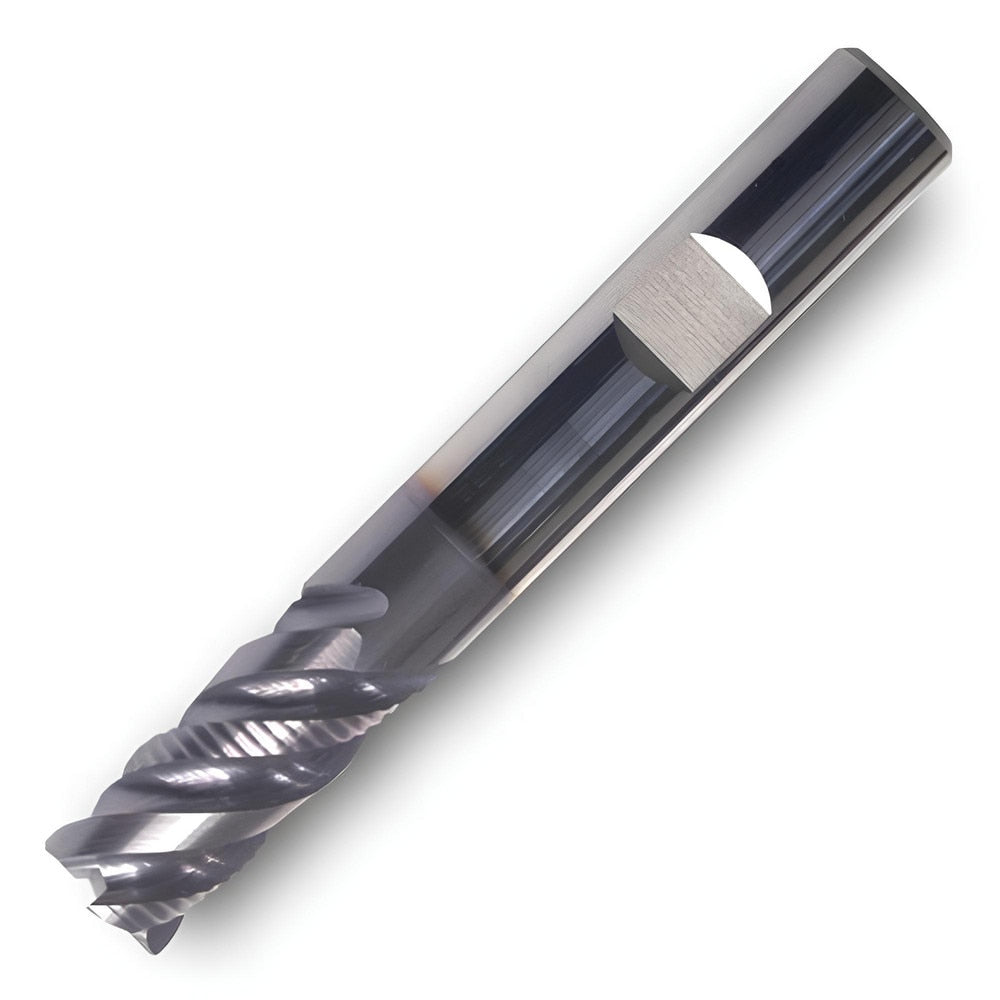

Brand: Ingersoll Cutting Tools / Part #: 5622696
Item #: 94035359
Brand: Ingersoll Cutting Tools
Model #: 5622696
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Chamfer Width (Decimal Inch) | 0.0240 |
| Coating/Finish | TiCN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Overall Length (Inch) | 4 |
| Length of Cut (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | Yes |
| End Type | Corner Chamfer |
| Chamfer Angle | 45.000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Helix Angle | 45 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Material Grade | IN1005 |
| Series | 47C_RU |
