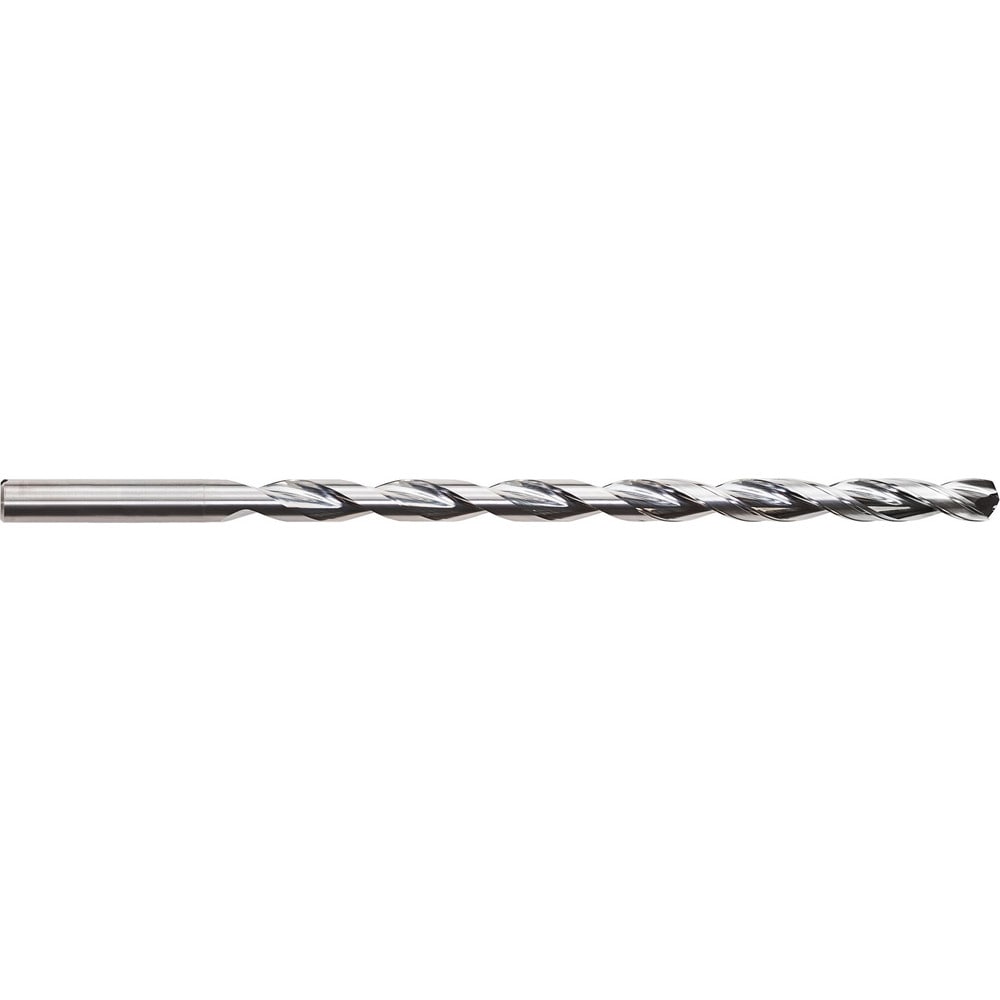

Brand: Guhring / Part #: 9065150098000
Item #: 98617921
Brand: Guhring
Model #: 9065150098000
Product Specifications
Drill Bit Size (Letter) | W |
Drill Bit Size (mm) | 9.80 |
Overall Length (mm) | 221.0000 |
Flute Length (mm) | 177.00 |
Tool Material | Solid Carbide |
Coating/Finish | Uncoated |
Drill Point Angle | 135 |
Shank Type | Cylindrical |
Coolant Through | Yes |
Flute Type | Spiral |
Series | 6515 |
Point Type | RT100 T |
Cutting Direction | Right Hand |
Tool Application | Deep Hole Drilling |
Spiral Type | Regular Spiral |
Drill Bit Diameter Tolerance | H7 |
Number Of Flutes | 2 |
Primary Workpiece Material | Aluminum |
Drill Bit Size (Decimal Inch) | 0.3858 |
Shank Diameter (mm) | 10.0000 |
Shank Length (mm) | 40.000 |
Flute By Diameter Ratio | 15xD |
Maximum Drilling Depth (mm) | 166.00 |
