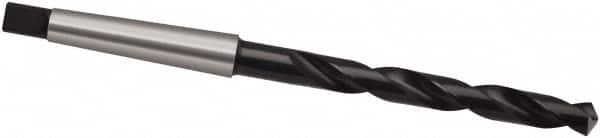

Guhring - 5.7mm, 1MT 118° Point High Speed Steel Taper Shank Drill Bit
Item #: 51650968
Brand: Guhring
Model #: 9002450057000
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 5.70 |
| Drill Bit Size (Decimal Inch) | 0.2244 |
| Drill Point Angle | 118 |
| Shank Taper Designation | 1MT |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright/Oxide |
| Flute Type | Spiral |
| Overall Length (mm) | 138.00 |
| Flute Length (mm) | 57.00 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Web Thinning | Web-Thinning |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M2 |
| Series/List | 245 |
