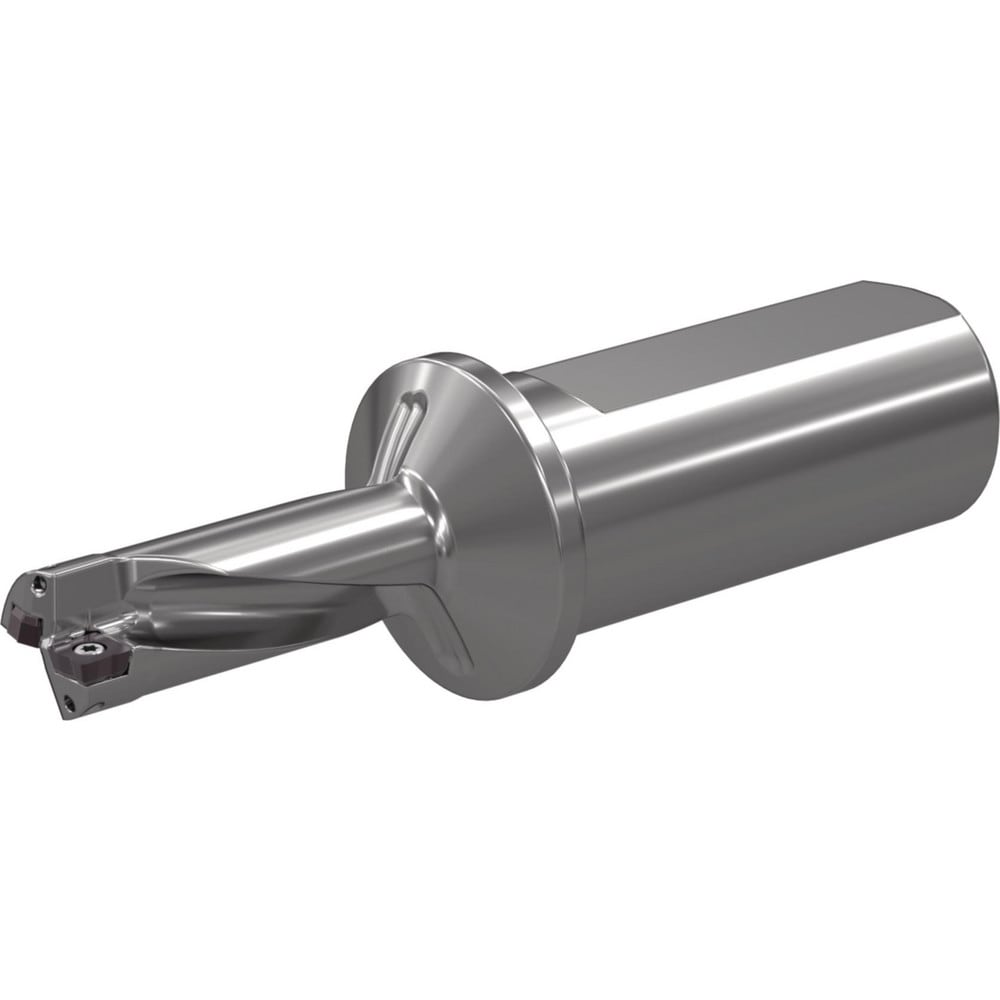

Brand: Widia / Part #: 5577922

Brand: Widia / Part #: 5577922


Item #: 90860602
Brand: Widia
Model #: 5577922

Product Specifications

Maximum Drill Depth 1.2830 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 32.58
Shank Type Weldon Flat
Shank Diameter (mm) 25.0000
Shank Diameter (Decimal Inch) 0.9843
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 54.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 16.00
Overall Length (mm) 110.5800
Overall Length 110.58
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 50.20
Shank Length (mm) 56.000
Gage Length (mm) 54.58
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Helical Flute
Maximum Cutting Diameter (mm) 16.00
Projection (mm) 54.580
Number Of Flutes 2
Coolant Through Yes
$309.90
