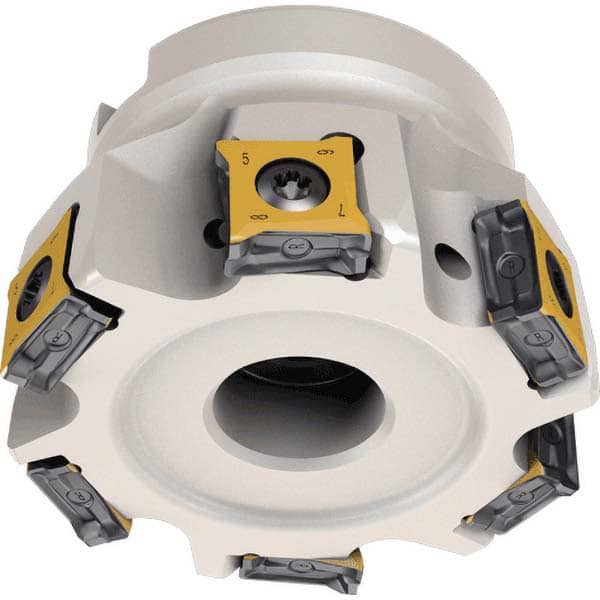

Iscar - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 63.50 Cutting Diameter (Decimal Inch): 2.5000
Item #: 31179971
Brand: Iscar
Model #: 3332797
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 63.50 ; Cutting Diameter (Decimal Inch): 2.5000 ; Arbor Hole Diameter (Inch): 1 ; Arbor Hole Diameter (Decimal Inch): 1.0000 ; Lead Angle: 90 ; Overall Height (Inch): 1.75
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 90 |
| Overall Height (Inch) | 1.75 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | T890 LN.T |
| Series | T890HT |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 57.200 |
| Hub Diameter (Decimal Inch) | 2.2520 |
