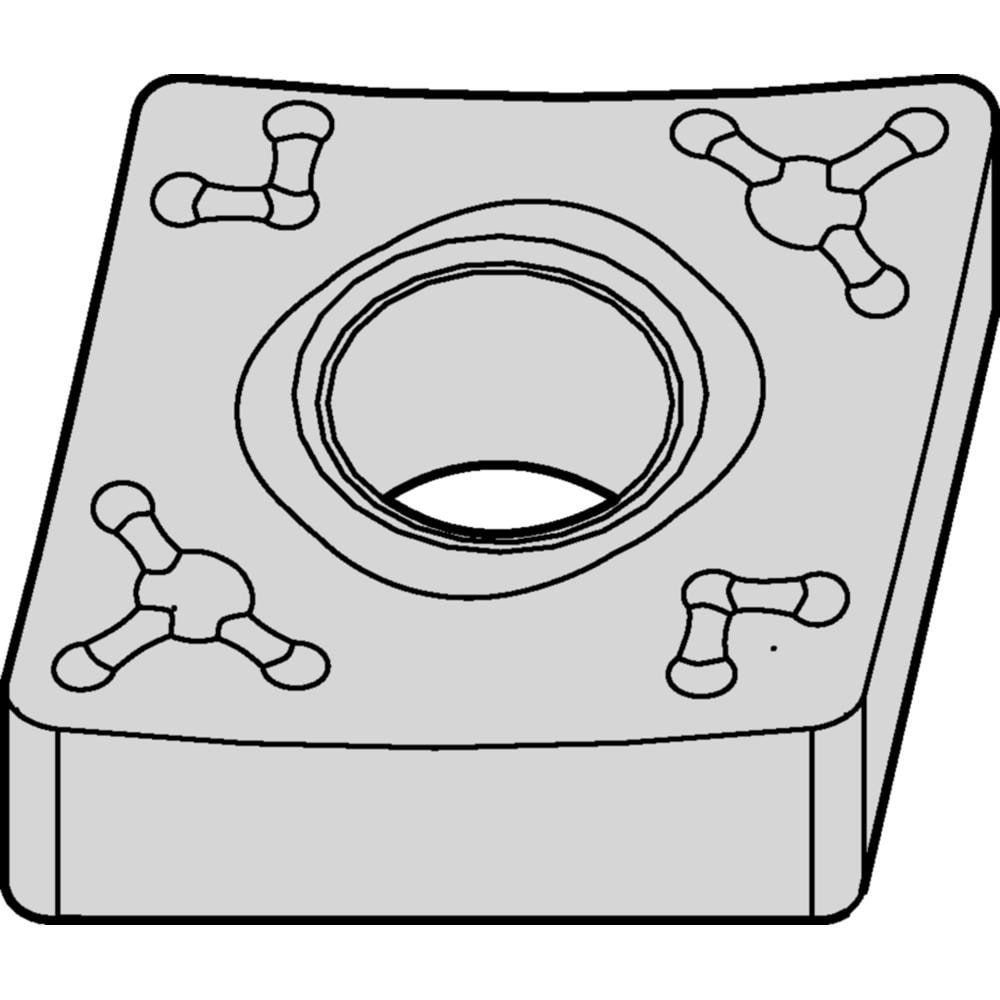

Brand: Widia / Part #: 5698411

Brand: Widia / Part #: 5698411


Item #: 94096294
Brand: Widia
Model #: 5698411

Product Specifications

Insert Style CNMM
Insert Shape Code C
Insert Size Code 646
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0945
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3122
Maximum Depth of Cut (Decimal Inch) 0.3808
Inscribed Circle (Decimal Inch) 0.7500
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMM
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.7616
Number Of Cutting Edges 4
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code CNMM64665
Iso Code CNMM19062465
Manufacturers Catalog Number CNMM64665
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 65
Style CNMM
Width (Decimal Inch - 4 Decimals) 0.7500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$27.67
