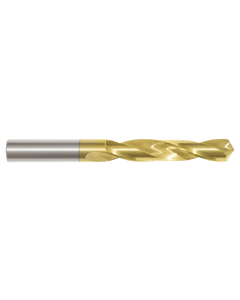

1.0mm CARB TWIST DRILL TiN
Item #: MW23450400394A
Brand: Monster Tool Company
Model #: 450-400394A
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1 mm |
| Cutting Edge Material | Solid Tungsten Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1 mm |
| Grade | C-2 Sub-Micron |
| Length Group | Jobber |
| Point Shape | Drill Point |
| Coating | TiN |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Series/List # | 450 |
| Application | | Drilling | |
| Length Chip Flute (LCF) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 1 mm |
| Overall Length (OAL) | 38 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 25 Degrees |
| Single / Double End | Single End |
