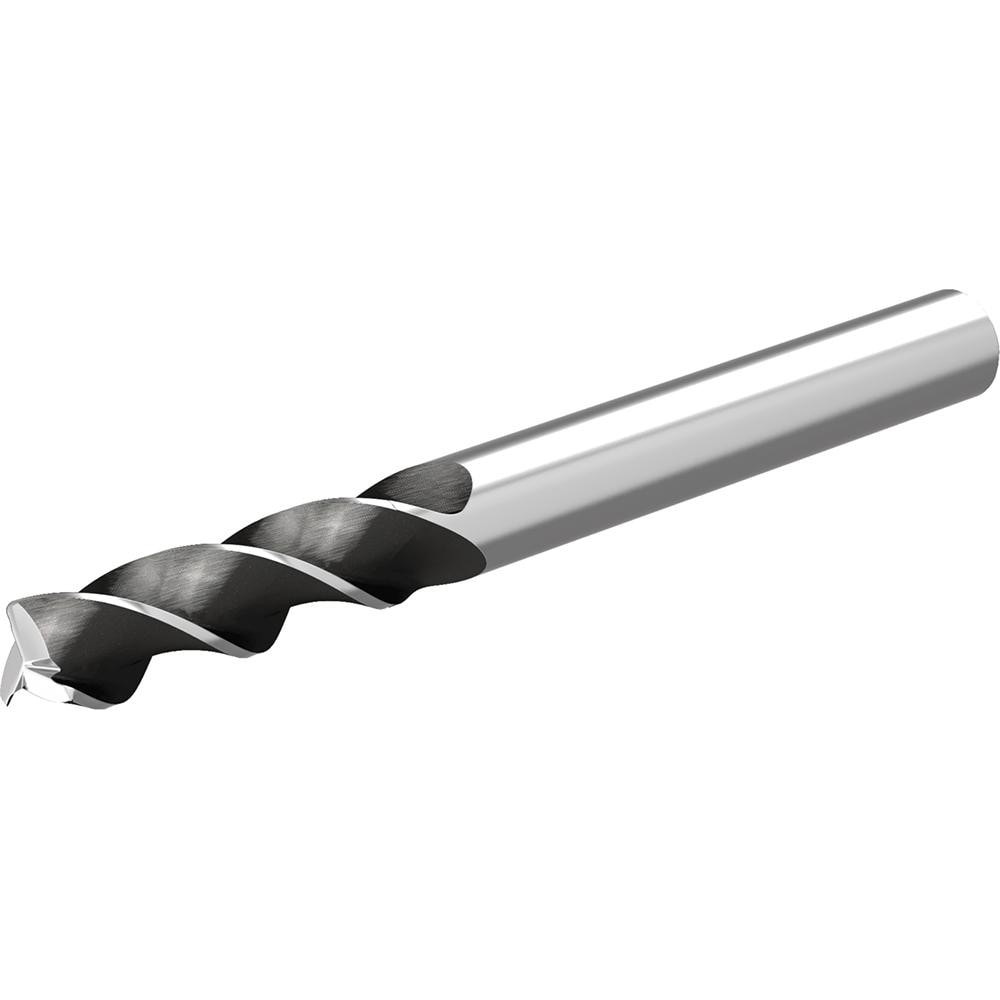

Brand: Widia / Part #: 6853345

Brand: Widia / Part #: 6853345


Item #: 98133572
Brand: Widia
Model #: 6853345

Product Specifications

Mill Diameter (Inch) 1
Corner Radius (Decimal Inch) 0.2500
Coating/Finish Uncoated
End Mill Material Solid Carbide
Number Of Flutes 3
Single Or Double End Single
Overall Length (Inch) 6-1/2
Length of Cut (Inch) 3-1/4
Cutting Direction Right Hand
Coolant Through No
Pitch Close
Mill Diameter (Decimal Inch) 1.0000
Flute Direction Right Hand
Helix Angle 36
Overall Length (Decimal Inch) 6.5000
Chipbreaker No
End Type Corner Radius
Length Of Cut (Decimal Inch - 4 Decimals) 3.2500
Length Type Long
Flute Type Helical
Extended Reach No
Shank Type Cylindrical
Centercutting Yes
Variable Index No
Variable Helix Yes
Material Removal Type Finishing
Shank Diameter (Decimal Inch) 1.0000
Shank Diameter (Inch) 1
Neck Diameter (Decimal Inch) 0.0000
Reach Length (Decimal Inch) 3.2500
Reach Length (Inch) 3-1/4
Minimum Helix Angle 37
Maximum Helix Angle 39
Primary Workpiece Material Non-Ferrous Metal
Primary Workpiece Material Code N
Series 3A19
Coating Classification Uncoated
Helix Style Variable
$331.61
