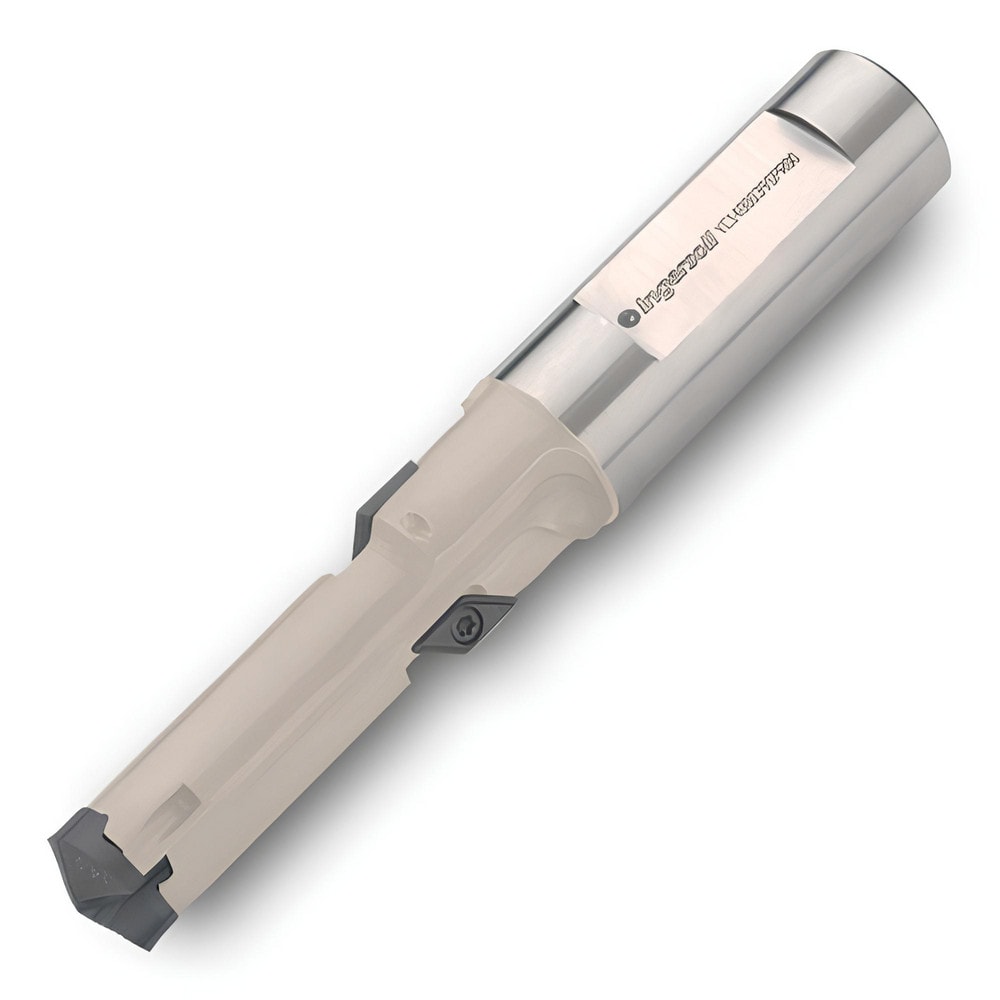

Brand: Ingersoll Cutting Tools / Part #: 3221096
Item #: 55548242
Brand: Ingersoll Cutting Tools
Model #: 3221096
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (Decimal Inch) | 0.4291 |
| Maximum Drill Depth (Decimal Inch) | 1.8900 |
| Shank Type | Weldon Flat |
| Insert Style | KOMT; YBB; YAB |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 10 |
| Tool Material | Steel |
| Compatible Insert Style | KOMT; YBB; YAB |
| Compatible Insert Size Code | 050104; 10.. |
| Overall Length (Decimal Inch) | 3.7800 |
| Series | YC |
| Toolholder Style | YC |
| Flute Length (Decimal Inch) | 1.8900 |
| Body Length (Decimal Inch) | 1.8900 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Drilling; Chamfering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
