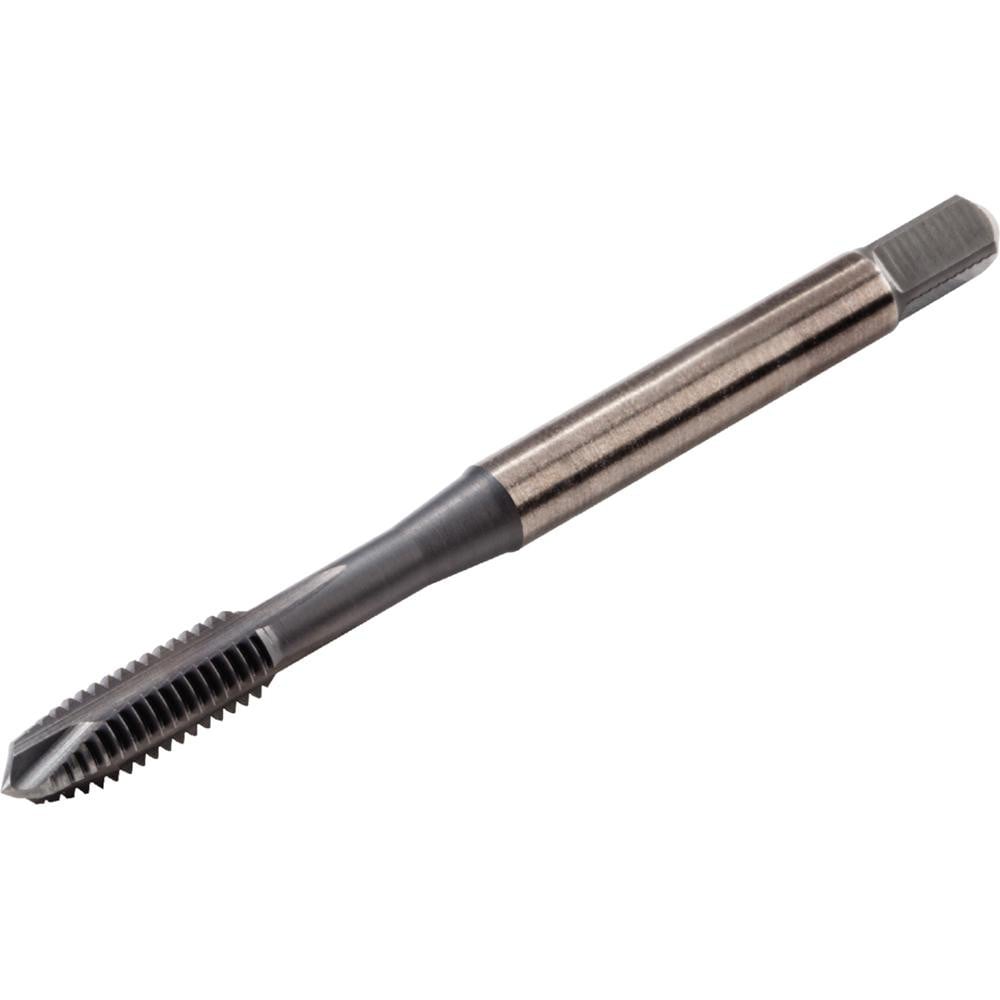

Brand: Widia / Part #: 6474974
Item #: 91943886
Brand: Widia
Model #: 6474974
Product Specifications
| Thread Size (Inch) | #4-40 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H7 |
| Class Of Fit | H7 |
| Coating/Finish | C; CrC; TiN |
| Threads per Inch | 40 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.6912 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Standard | UNC |
| Material Grade | WN44EG |
| Thread Length (Decimal Inch) | 0.5122 |
| Overall Length (Decimal Inch) | 1.8758 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1080 |
| Material Application | Stainless Steel |
| Series | VT-AFT |
