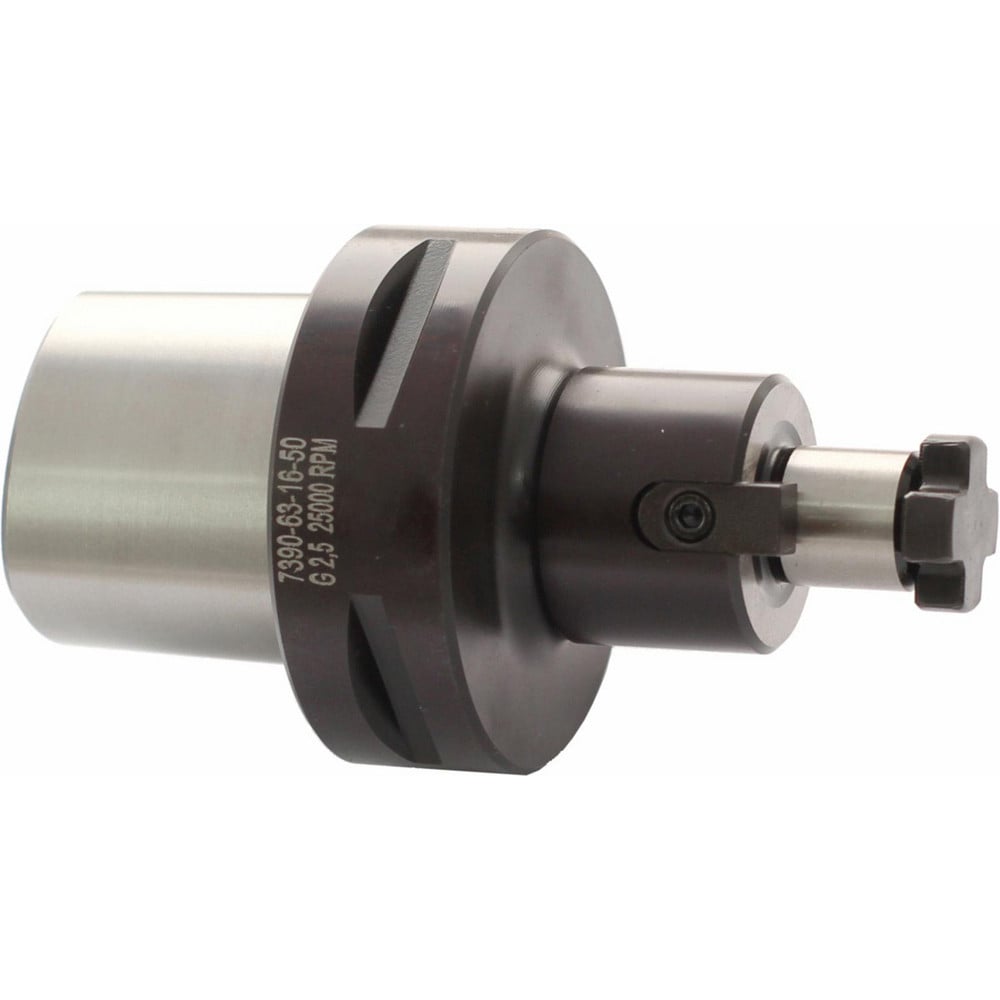

Brand: Bison / Part #: 7-148-480
Item #: 90898552
Brand: Bison
Model #: 7-148-480
Product Specifications
| Modular Connection Size | C4 |
| Overall Length (Decimal Inch) | 2.6800 |
| Overall Length (mm) | 68.0700 |
| Maximum RPM | 25000.000 |
| Projection Flange to Nose End (Decimal Inch) | 2.6800 |
| Projection Flange to Nose End (mm) | 68.07 |
| Taper Size | C4 |
| Pilot Diameter (Decimal Inch) | 1.0000 |
| Pilot Diameter (Inch) | 1 |
| Nose Diameter (Mm) ( - 2 Decimals) | 57.15 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.2500 |
| Through Coolant | Yes |
| TIR (mm) | 0.0050 |
| TIR (Decimal Inch) | 0.000200 |
| Overall Height (Decimal Inch) | 3.6300 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Balanced To Rpm | 25000 |
| Gage Overall Length (mm) | 68.07 |
| Overall Height (Mm - 5 Decimals) | 92.20000 |
| Gage Overall Length (Decimal Inch) | 2.6800 |
