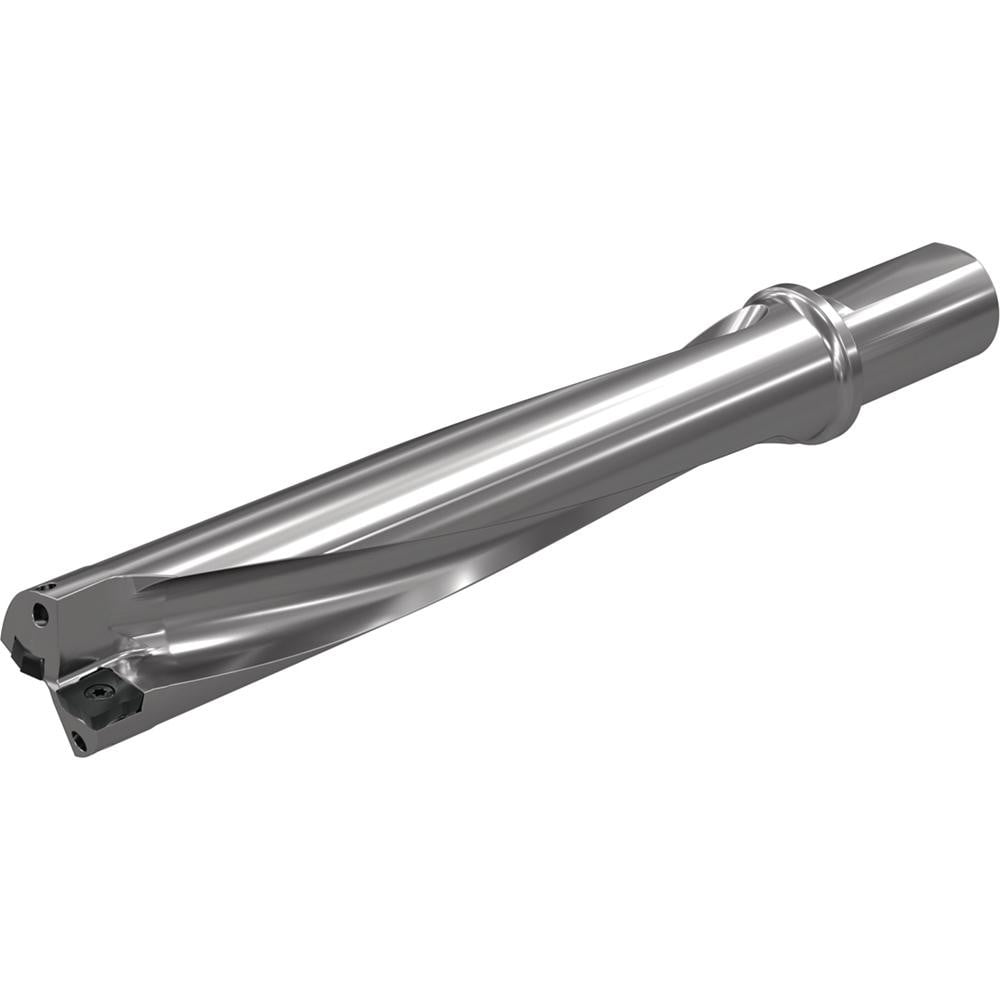

Brand: Widia / Part #: 5537931

Brand: Widia / Part #: 5537931


Item #: 97345276
Brand: Widia
Model #: 5537931

Product Specifications

Maximum Drill Depth 5.0360 in
Drill Depth by Diameter Ratio 5xD
Maximum Depth of Cut (Decimal Inch) 5.0360
Shank Type Weldon Flat
Shank Diameter (Inch) 1
Shank Diameter (Decimal Inch) 1.0000
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 6.1580
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 1.0000
Overall Length (Decimal Inch) 8.3989
Overall Length 8.40
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 6.0360
Shank Length (Decimal Inch) 2.2047
Gage Length (Decimal Inch) 6.1942
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/4-18
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 1.0000
Number Of Flutes 2
Projection (Decimal Inch) 6.1942
Coolant Through Yes
$469.47
