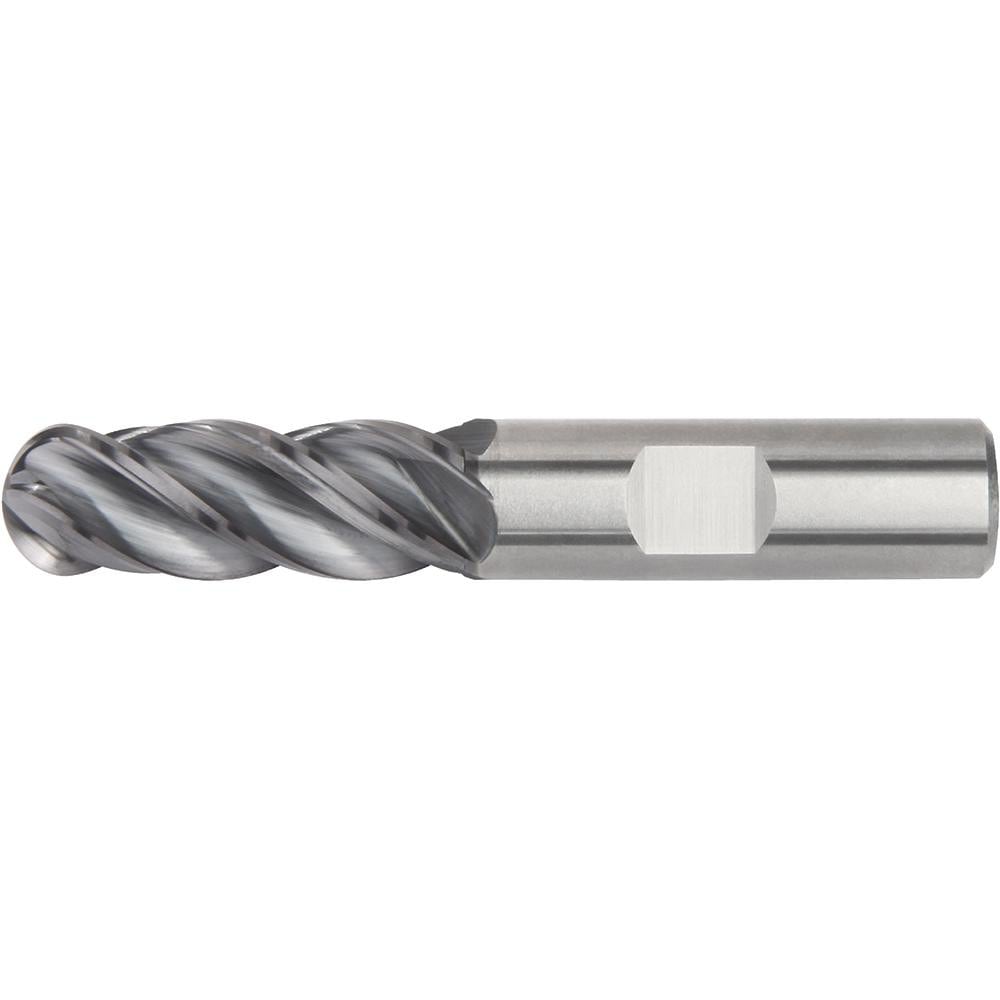

Brand: Widia / Part #: 5576665
Item #: 33977075
Brand: Widia
Model #: 5576665
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| End Type | Single |
| Extended Reach | No |
| Undercutting | No |
| Helix Style | High |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Nose Radius (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 1-1/2 |
| Reach Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Maximum Helix Angle | 38.00 |
| Minimum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | WP15PE |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 4V00 |
| Flute Type | Fast |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
