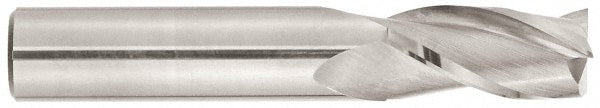

Brand: Niagara Cutter / Part #: N85955
Item #: 36707057
Brand: Niagara Cutter
Model #: N85955
Product Specifications
| Mill Diameter (Inch) | 7/8 |
| Mill Diameter (Decimal Inch) | 0.8750 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 7/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 4 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | -0.0001/-0.0005 in |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.001/-0.000 in |
| Overall Length Tolerance | +0.062/-0.000 in |
| Series | C330 |
